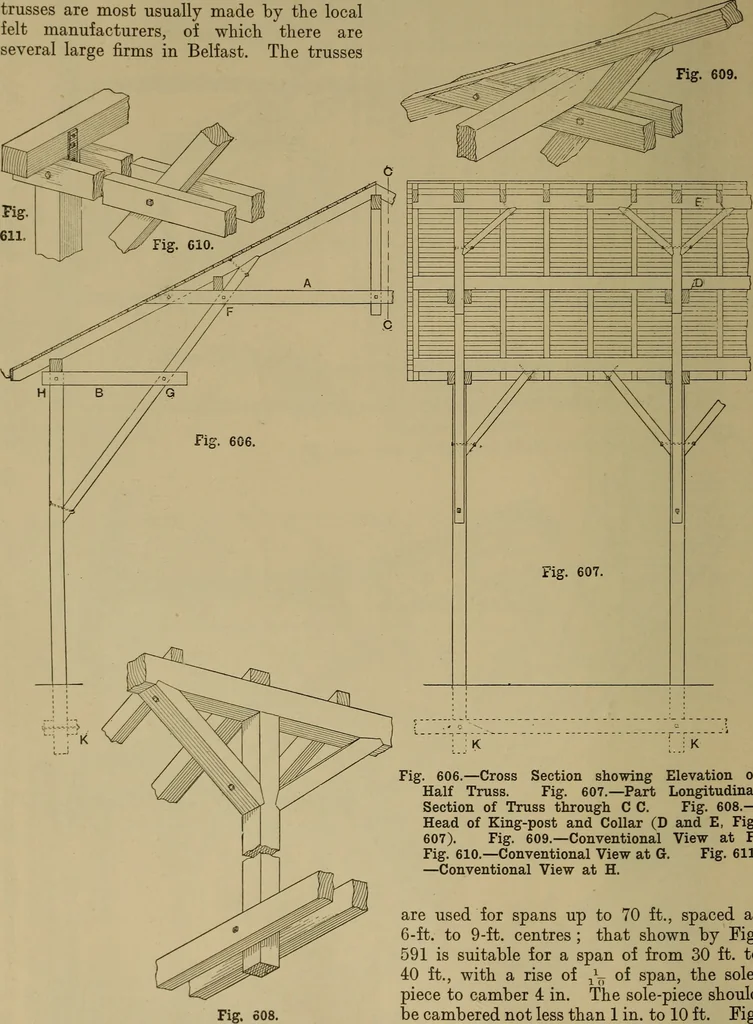

158 CARPENTRY AND JOINERY. well coated with varnish, and sanded. Thetrusses are most usually made by the localfelt manufacturers, of which there areseveral large firms in Belfast. The trusses … Fig. 606.—Cross Section showing Elevation ofHalf Truss. Fig. 607.—Part LongitudinalSection of Truss through C C. Fig. 608.—Head of King-post and Collar (D and E, Fig.607). Fig. 609.—Conventional View at F.Fig. 610.—Conventional View at G. Fig. 611.—Conventional View at H. are used for spans up to…
