The American house carpenter. A treatise on the art of building. Comprising styles of architecture, strength of materials, and the theory and practice of the construction of floors, framed girders, roof trusses, rolled-iron beams, tubular-iron girders, cast-iron girders, stairs, doors, windows, mouldings, and cornices; together with a compend of mathematics. A manual for the practical use of architects, carpenters, stair-builders, and others (1880)
Hatfield, R. G. (Robert Griffith), 1815-1879, Hatfield, O. P., ed · New York, J. Wiley & sons · leaf 288

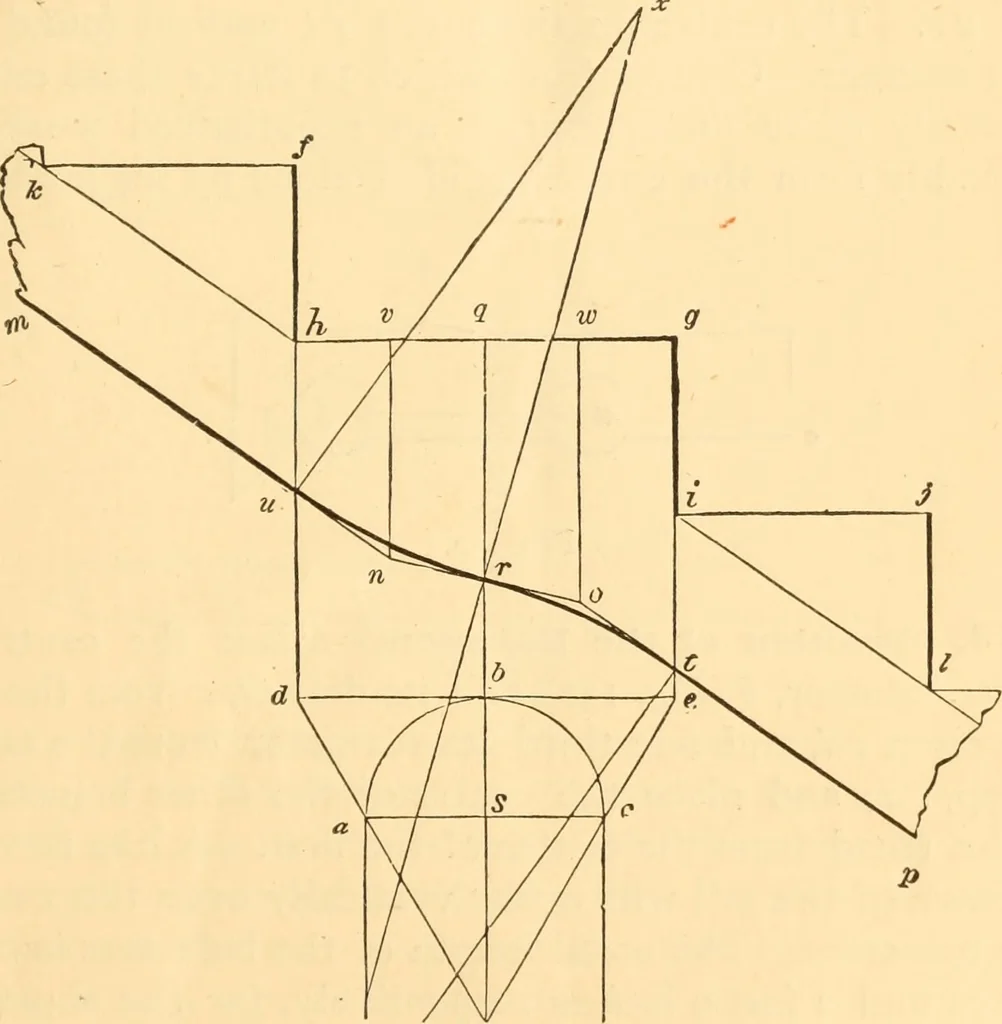

Fig. 131, 257. — Form of I^ower Edge of Cylinder. — Find thestretch-out, de {Fig. 131), of the face of the cylinder, a be, 250 STAIRS. according to Art. 524; from d and e draw <^/ and eg atright angles to de\ draw kg parallel to de, and make kfand ^? each equal to one riser; from i and / draw ij…
Carpentry · Architecture · Building
