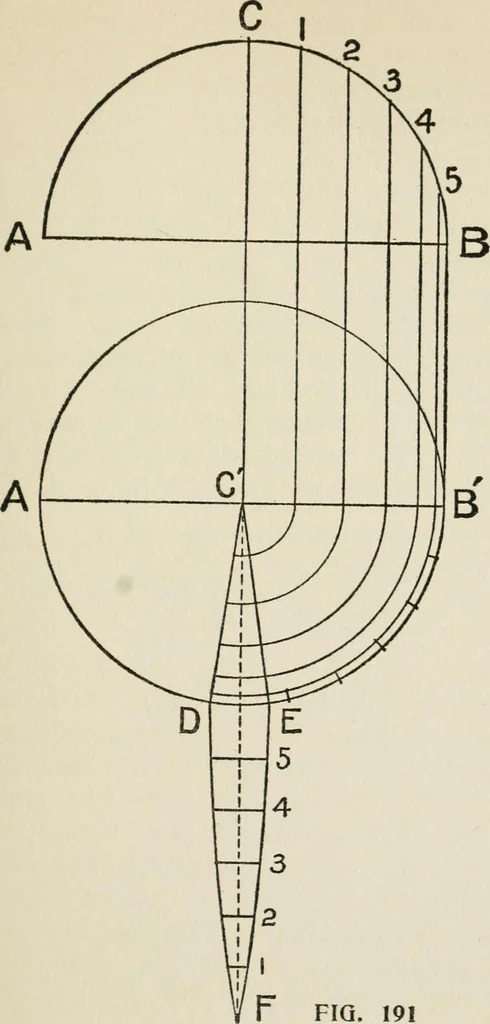

F give theproper shape for the moulding at the top return.To Cover a Circular Dome with Vertical Board=ing. The upper part of Fig. 191 represents theelevation of the dome, and the lower part repre-sents the plan and the shape of the board in thestretch-out. Divide the diameter of the domeinto… … FIG. 191 248 PRACTICAL CARPENTRY diameter of the plan as at CB^ From C as acenter draw lines CD and CE which representsthe board in its respective place on the dome.From C as center and with the points 1, 2, 3, etc.,on the diameter swing around to CD and CE asshown; and on the line CF lay off the…
