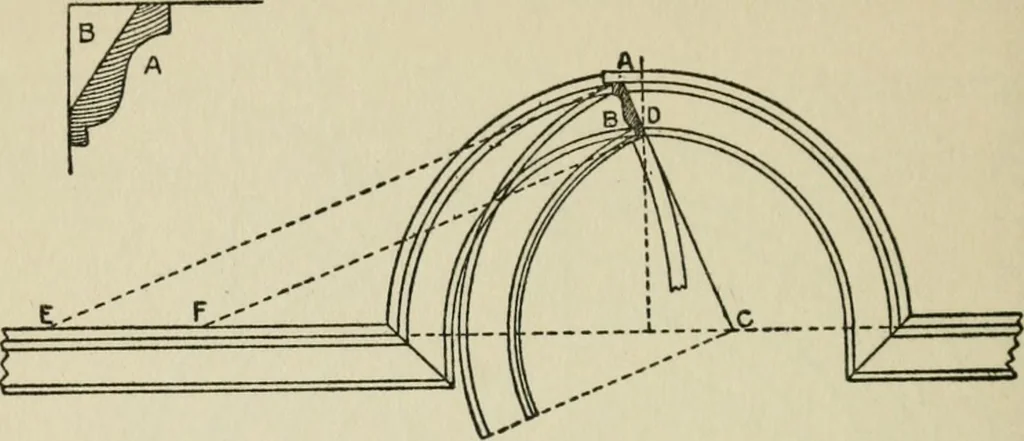

FIG. 196 elevation of a circular moulding mitered into ahorizontal moulding. The shape and plan of themoulding is shown at B. It is evident that byproducing the Une AD to intersect the center line 252 PRACTICAL CARPENTRY of the arc at C, the central point will be obtained,from which the circular… … FIG. 197 FIG. 198 the radius for the curves of both edges when thestuff is in position, as shown in the elevation. Fig. 199 shows the application of the samerules to a circular elevation of a different formstanding over a straight plan. The back lines of
