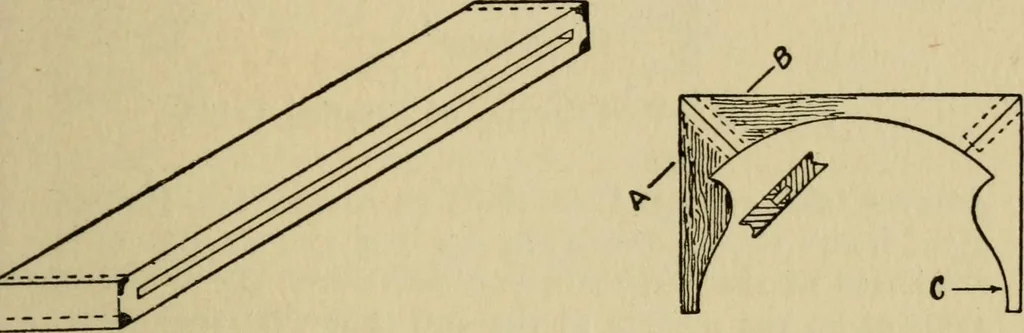

ed and Grooved Joint tongue; the other half of the top is treated in a similarmanner. It will be noticed that the groove is not workedthrough the full length of the board, but stopped aboutIJ in. from each end ; this leaves a square joint at eachend of the top on which the moulding is worked. If… … Fig. 104.—Part of Sideboard Top;grooved with ends left blind. Fig. 105.—Shaped Spandrelfor Recess. of such a width that, were it cut from a wide board, theshaped portion would be apt to break off owing to the shortgrain at C. The shaping is therefore built up out of threeseparate pieces, the grain…
