Radford's cyclopedia of construction; carpentry, building and architecture. Based on the practical experience of a large staff of experts in actual constrcution work (1909) Johnson, Alfred Sidney, 1860-, Radford, William A., 1865- · Chicago Radford Architectural Co · leaf 357

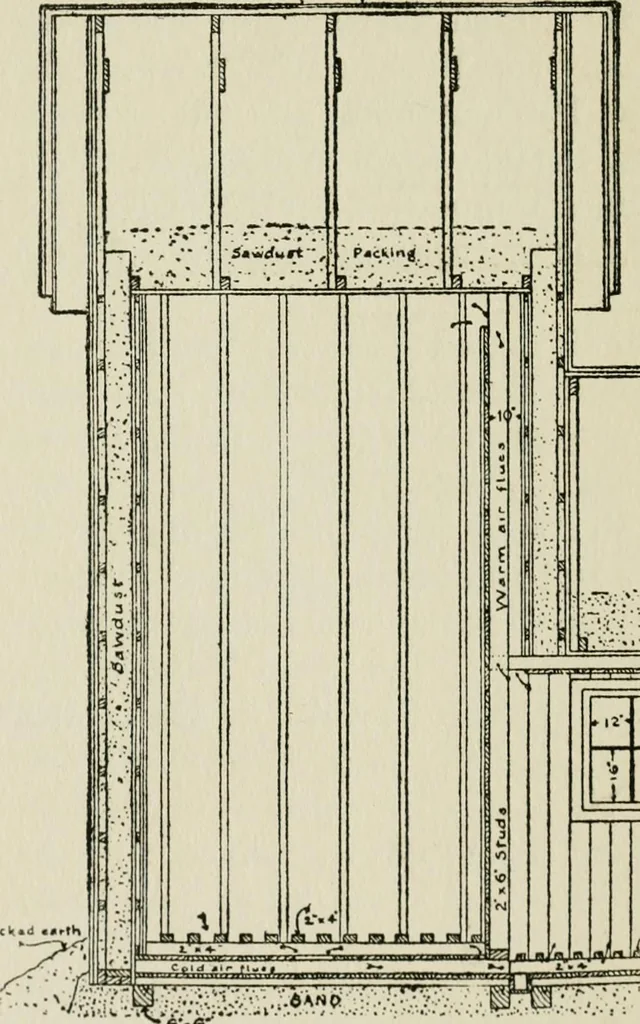

gerat-ing chamber, and back onto the surface of theice in the ice chamber. Any odors and gasesfrom the food are thus brought into direct con-tact with the melting surface of the ice, whichabsorbs them and keeps the air in the food cham-ber in good condition. The design here given is adapted from… … jj C, Tyenf ■ V I ► |2 _L mr-rr: miii iiniipni ^ [ • 6*.6 Fig. 270. Section through Ic© and Refrigerating Chambers. lower the food chamber. Each portion has ametal ventilator, fixed on the ridge. The roofsare of shingles, laid on one-inch ])oar(ling in the PRACTICAL CARPENTRY 319 Architecture · Building
