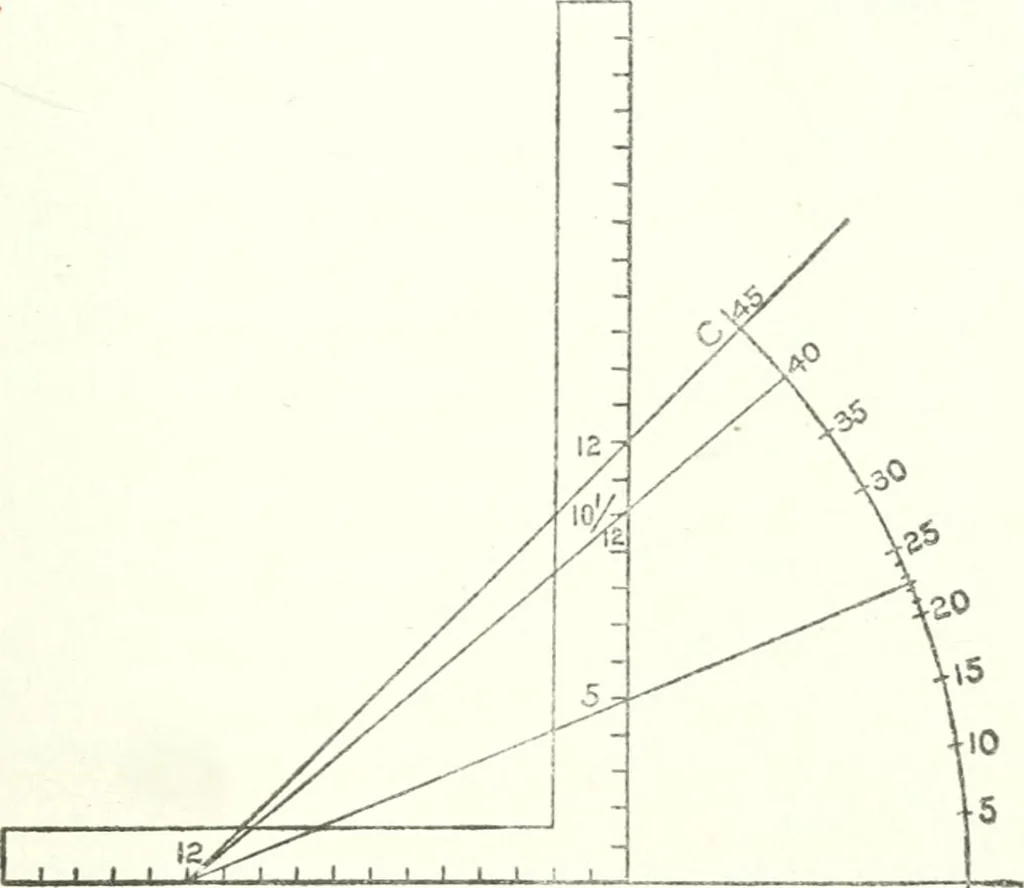

scale for framingpurposes, though unquestionably it would be agood thing instead of some of the obsolete rulesthat now encumber its faces. However, in theabsence of a protractor, the angle may be found FRAMING 121 as shown by the accompanjdiig illustration, Fig.66, as follows: Lay off a line, as at… … A bT Fig. 66. To Lay Out an Angle with the Steel Squaxe. dius—the larger the better, for the more accu-rate will be the final result. Divide this arc intonine equal parts, and these divisions will be fivedegrees apart, as shown by the figures oppositethe divisions. Now, to find the figures on…
