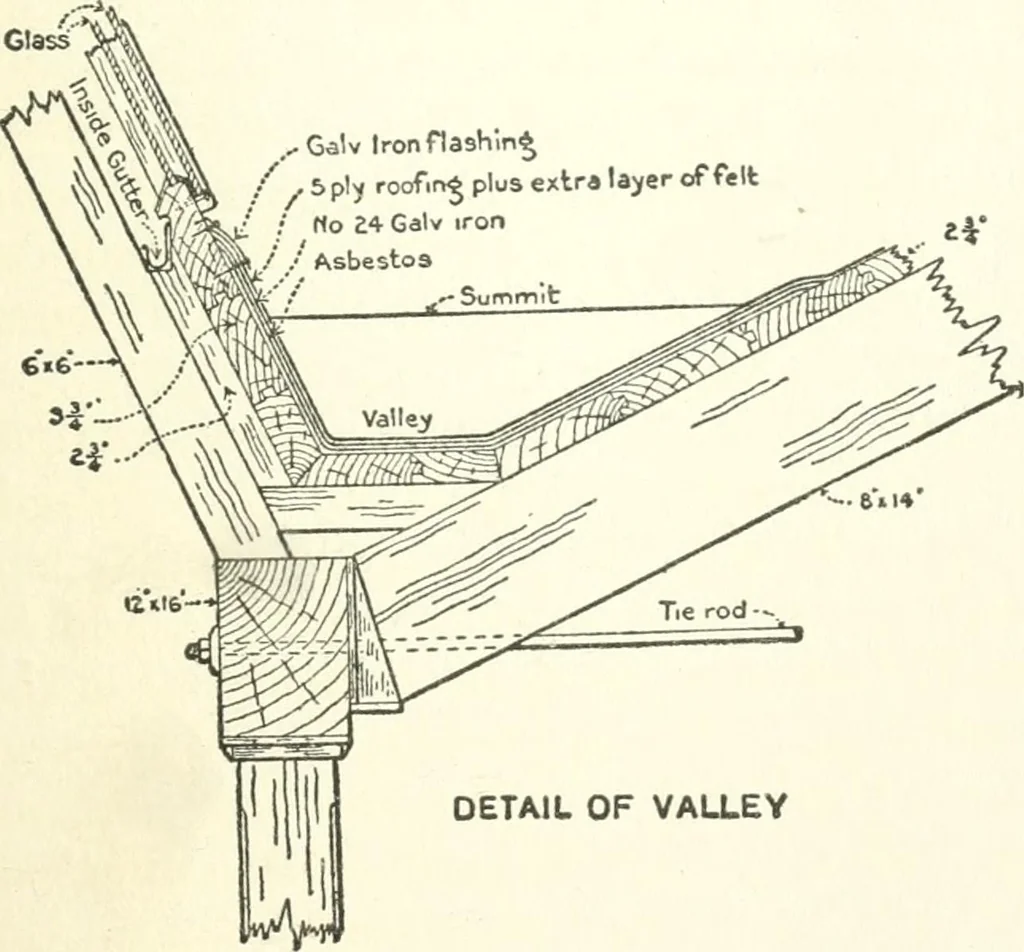

e amount of light required, and on thelatitude. A sharper angle at the top is notneeded, as it increases the cost, there beingmore roof to cover and larger spans. More glassis also required in proportion, and the light isnot so good, more sky light being lost and toomuch thrown on under side of… … DETAIL OF VALLEY Fig. 160. Saw-Tooth Roof Framing—Detail of Valleys. The inside glazing should be factory ribbedglass, with ribs vertical and inside. Shadowscast by trusses are then almost unnoticeable. 290 TEAMING Condensation gutters, as shown in the detaildrawing, Fig. 160, are needed inside at…
