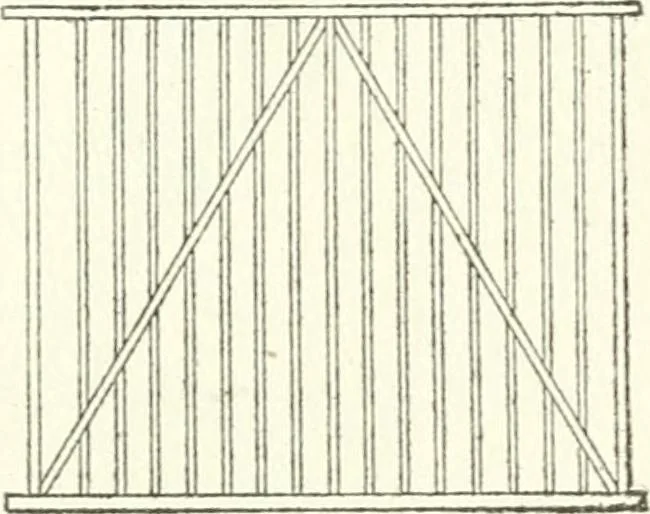

titions. Quite recently the writernoted for the second time only, in a somewhatwide experience of construction, a very cuiiousand mistaken way of putting braces in a parti-tion. The carpenter had placed the head andsill in position, and then cut and nailed up allthe studs in position before the… … yvrong nay fii^hr maxf Fig. 17. Bracing a Partition. nearly so effective as if they had been fitted infirst in one piece, and the studs cut in after, asshown in the right-hand sketch in Fig. 17. By putting the braces in first, not only istheir full strength obtained, but the frame ofthe partition…
