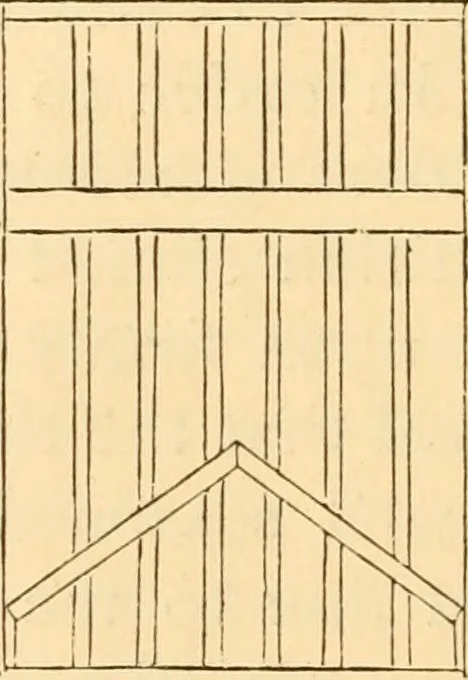

iS^.-^ Fig. 57. should be placed so as to form, as near as possible, an angleof 40 degrees with the horizon. The braces in a partitionshould be so placed as to discharge the weight upon the P^. R^ \-Y/ ^, r ^ 1^ y Fig. 58. points of support. All oblique pieces that fail to do thisshould be omitted.…
