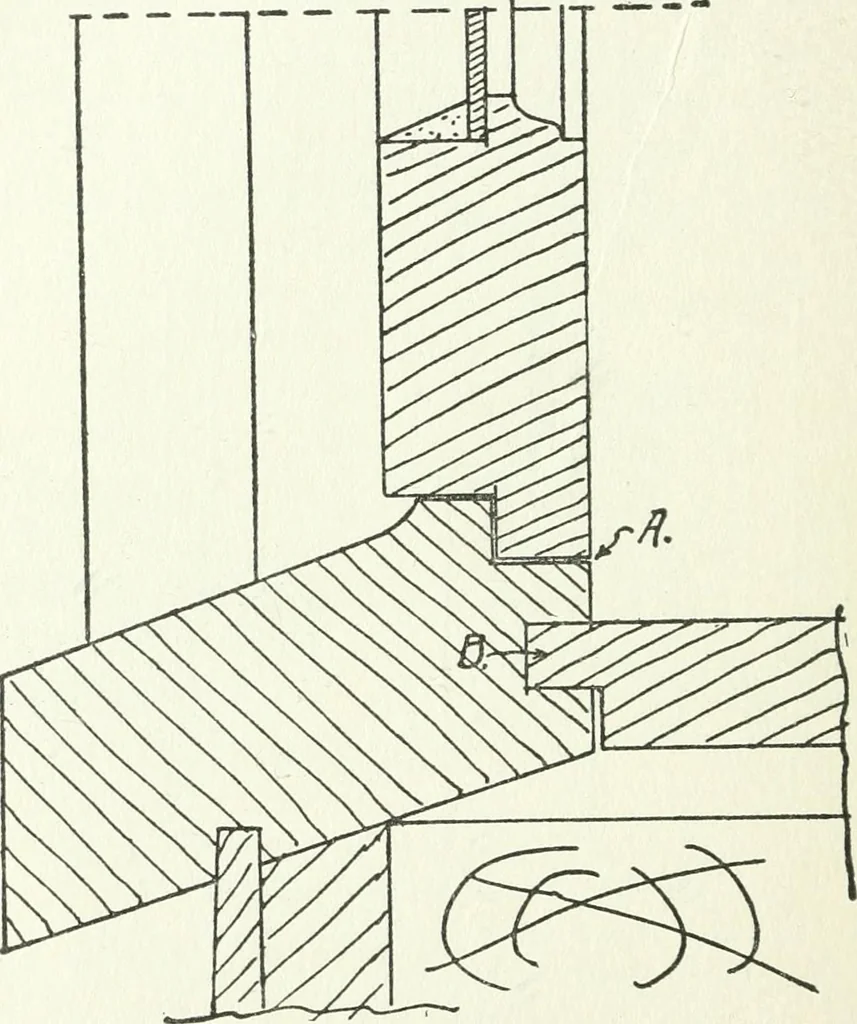

sub-sill, letting the end of this sill pro-ject same as for window sill, and only notchout enough of the back corners to fit nicely inopening for the window as shown by the sec-tional drawing, Fig. 22. The joints should beset in white lead, and well painted on theoutside. 40 FEAMING Single-Sash… … Fig. 23. Framing for Slngle-Sash Windows. weather, is a problem that has caused the car-penter more or less study for years. We have found no better way to accomplishthe work than the arrangement shown inFig. 23. FRAMING 41 The sill is made with a lip and then rabbeted,as shown at A. The sash is…
