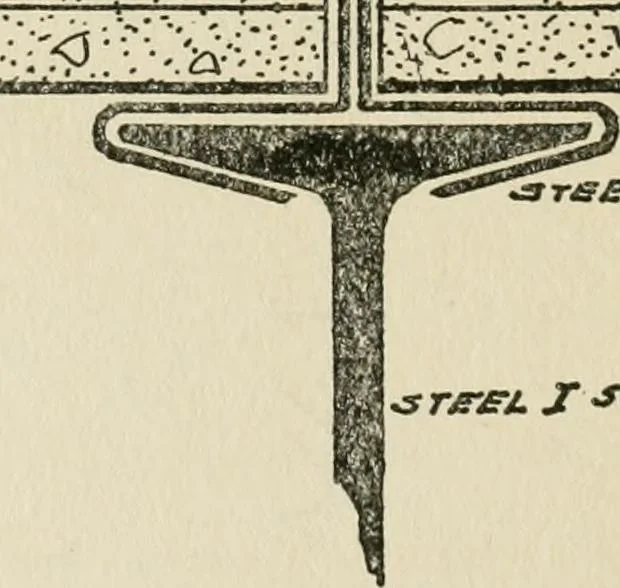

^ Wm0?^ III ■ifilli I 1^1 ji» »ii fm^il i\ ■Jim 1^1 ji> »ii/iii> --■-^,^^;^---^.: … ^reeL CLi^ ^TM-ei. XfVfPOfn Fig. 11. Use of Steel Clips. When the joists are placed on top of an I-beam for an intermediate support, two steel clipscan be fastened over the top flange of the I, andthe ends of the joist placed against their turned-up ends, as shown in Fig. 11. This provides amethod…
