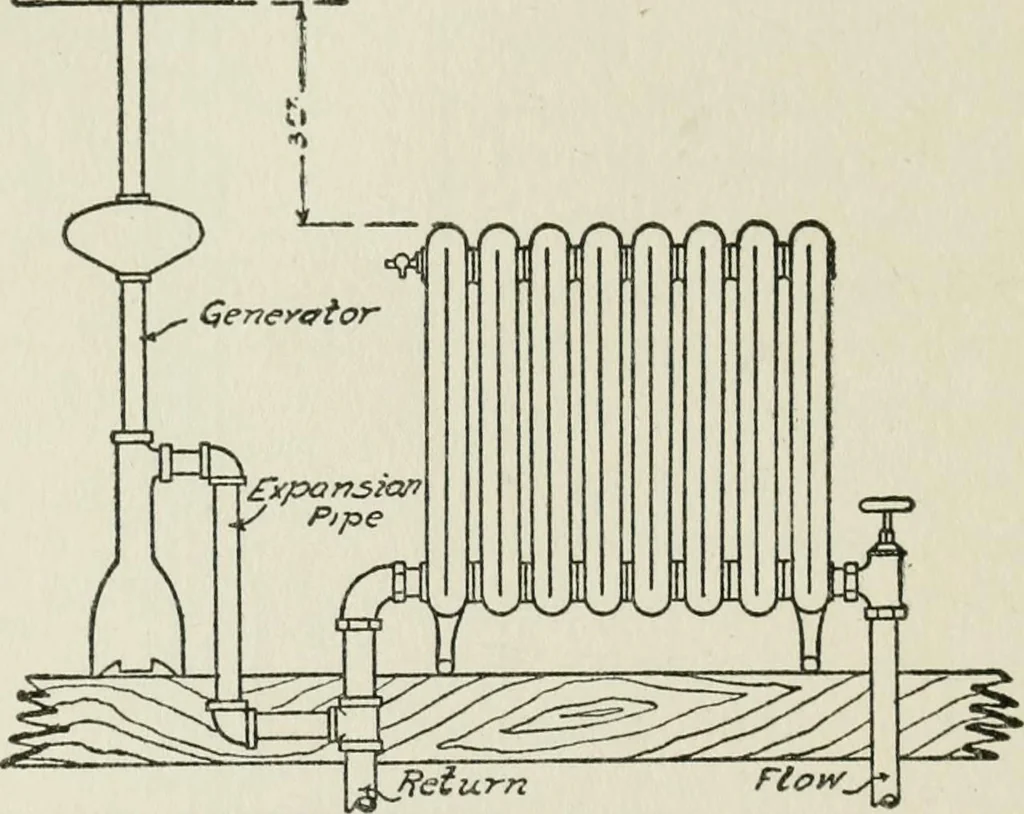

Fig. 61. Cross-Section ofHoneywell Crenerator. 90 HEATING AND VENTILATION mercury appliances somewhat similar to eachother in construction and operation. Fig. 61is a cross-section of a Honeywell generator.At the top is the elliptical-shaped casting A,which is connected to the bottle-shaped casting… … Fig. 62. Honeywell Generator Located Directly under Expansion Tank. B by the pipe C. This pipe extends almostto the bottom of the generator, terminat-ing in the cup-shaped shoe D. A smallerpipe E, curved at the bottom to fit into anorifice in the side of the shoe D, passes upthrough the center of…
