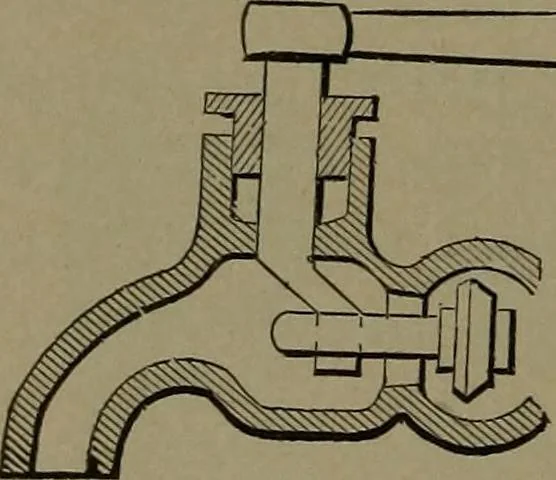

589. UNIVERSAL PIPE JOINT.—The flangesare faced at 45° to the line of the pipe, with a^^^ through bolt at right angles to the faces of the flanges.The joint may be made at any angle up to 90°. I s^^^^^^s^ ^^^^^^^s ^ 590. TOGGLE CLIP PIPE JOINT.J quick connecting joint for hose. … ^ 591. BIBB, with crank-moved valve open-ing against the pressure.
