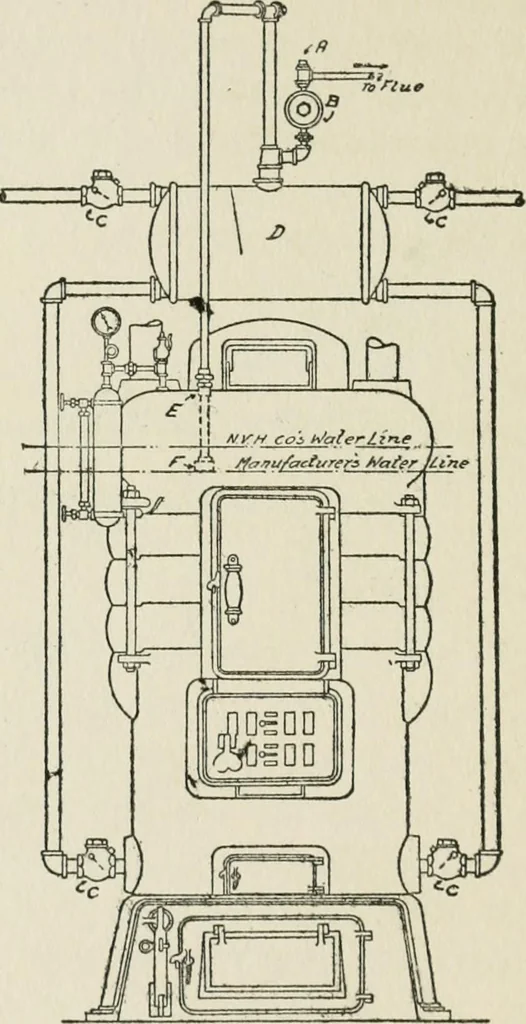

n to allow all air andwater to escape from the radiator, closingagainst any escape of the steam. The waterand air are taken through the return to a re-ceiving tank located above the boiler, the supplyof the latter leavdng the system through avacuum valve and passing to the atmosphere, 136 HEATING… … , Fig. 107. Dunham Vacuum System of Heating. accumulates until such a quantity of water hasbeen evaporated from the boiler as will lowerthe water-line sufficiently to uncover the end ofthe equalizing tube F, which connects thiough HEATING AND VENTILATION 137 the boiler coupling E, forming a loop…
