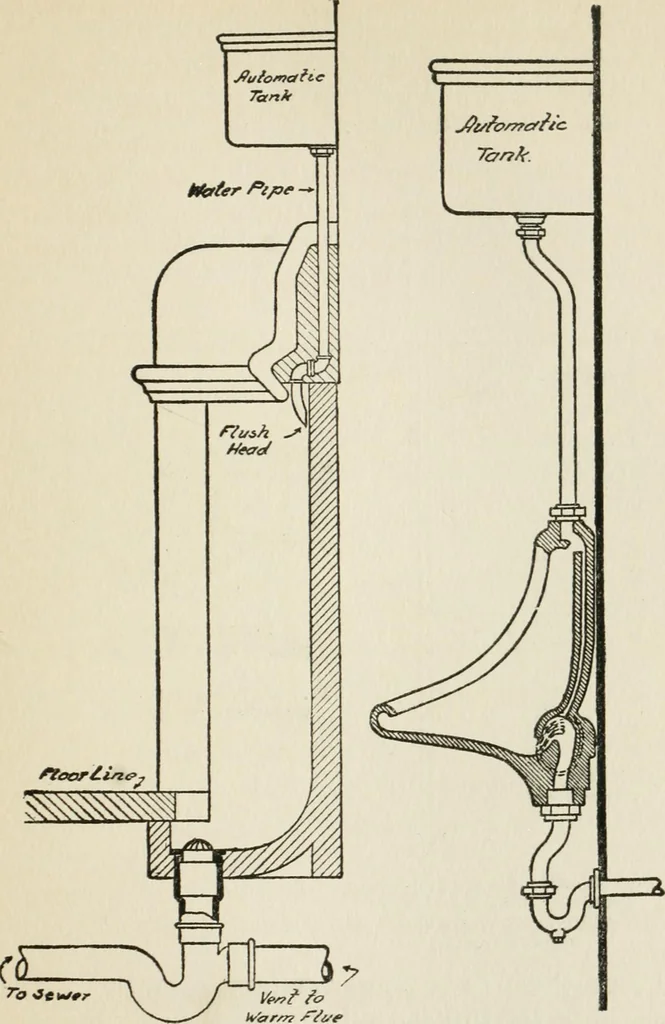

Fig. 77. End Elevation of Closet Stalls.Flush tank to each closet. Fig. 78 shows a side view of the urinals.The system of waste- and vent-piping is shownin Figs. 74 and 75. There may be a single automatic flush-tankfor each urinal; or one flush-tank for the liatteryof urinals; or each urinal may be… … Fig. 79. Side View of Porce-Fig. 78. Side -View of Siphon- lain Urinal. Jet Urinal. 260 PLUMBING direct to the water supply, and be provided witha compression or self-closing urinal cock. Theautomatic tank is preferable, as it insures theurinals being flushed at regular intervals, and ^^Jfttcr--^…
