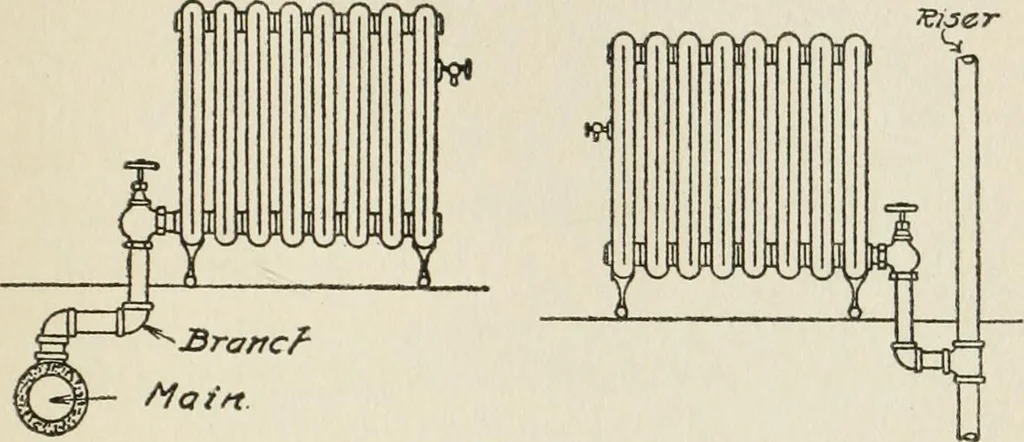

, the por-tion of the return pipe in the unexcavated sec-tion of the building remaining full of water.When it is necessary to drain the system, allwater is expelled by the opening of this valve.Steam Radiator Connections. In order prop- HEATING AND VENTILATION 57 erly to install a steam-heating… … Fig. 30. Stiff Radiator Connec-tion to Main. rig. 31. Stiff Radiator Connec-tion to Riser. main is shown in Fig. 30; the same from a riser,in Fig. 31. To allow for expansion, the radiator may beconnected to the main by the style of branchshown in Fig. 32. When, in connecting a radi-ator to a riser,…
