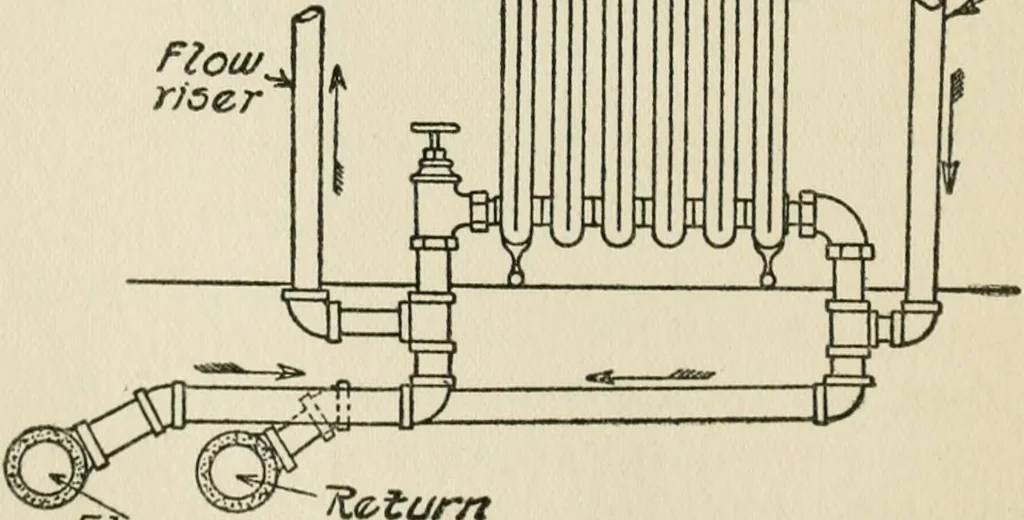

^FIOiA/ Jdeturn Fig. 43. Ordinary Method of Connecting a Hot-Water Radiator toFlow and Return Mains. from it, the action being quite similar to that ofthe ordinary closet tank. No water-gauge is re-quired on a tank of this character; and as thetop is open, a vent is not necessary. ■jpjpjrYV\?i… … Flow R<Ztur/t Fig. 44. Connections of First-Floor Hot-Water Radiator whenBranch Feeds Also a Riser. HEATING AND VENTILATION 73 Hot - Water Radiator Connections. The usage of the double-swing or expansion joint, towhich attention was called in discussing the con-nection for steam radiators, is…
