Radford's portfolio of details of building construction : a remarkable and unique collection of full-page plates, accurately drawn and reproduced to exact scale ... (1911)
Radford, William A., 1865-, Johnson, Bernard L, Rawson, Charles P · Chicago : The Radford Architectural Company · leaf 106

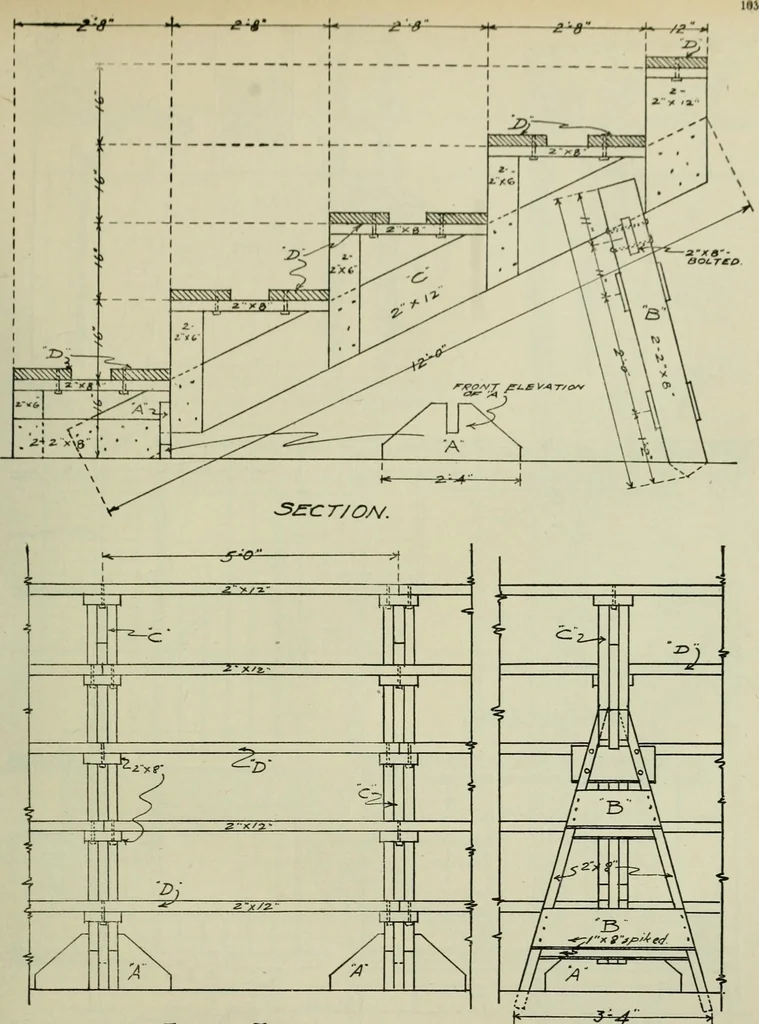

n r$ -o m. w*F% PLATE 92—SMALL GRAND STAND Floor plan and cross section showing complete such a structure can be made, yet it is strong anddetails of a grand stand for athletic grounds, to makes a good appearance. It is well to nail wireseat about 200 peonle. It is about as cheap as netting over… … Front Elevation Rear Elevation. PLATE 93—PORTABLE KNOCK-DOWN BLEACHERS Complete working drawings for portable are to be placed five feet apart, the 10-foot long bleachers for athletic grounds which can be seat planks alternating joints. The support, B, knocked down for storage during the seasons…
Building · Architecture
Internet Archive · University of Toronto, Robarts Library · Public Domain Mark 1.0. Free to use for anything.
