Radford's portfolio of details of building construction : a remarkable and unique collection of full-page plates, accurately drawn and reproduced to exact scale ... (1911)
Radford, William A., 1865-, Johnson, Bernard L, Rawson, Charles P · Chicago : The Radford Architectural Company · leaf 108

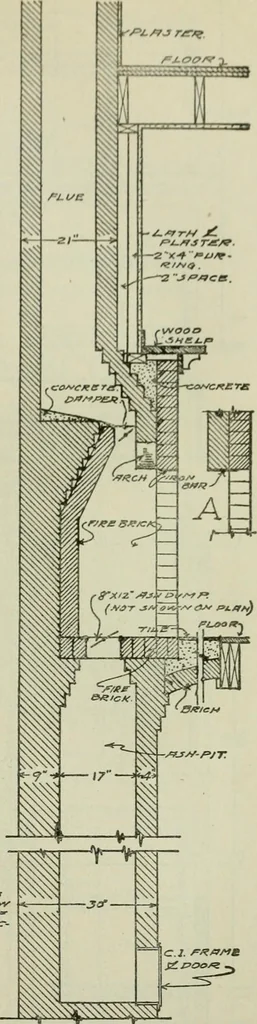

SS£>&/? TH. &LAN … 5ECT/OA/ PLATE 95—FIRE PLACE CONSTRUCTION Design for fire place with brick mantel, plan cause the fire place to smoke. Note air space be- and elevation showing best construction and ar- tween brick chimney and the wood framing, rangement for an open fire place that will not Dotted lines show the…
Building · Architecture
Internet Archive · University of Toronto, Robarts Library · Public Domain Mark 1.0. Free to use for anything.
