Radford's cyclopedia of construction; carpentry, building and architecture. Based on the practical experience of a large staff of experts in actual constrcution work (1909)
Johnson, Alfred Sidney, 1860-, Radford, William A., 1865- · Chicago Radford Architectural Co · leaf 314

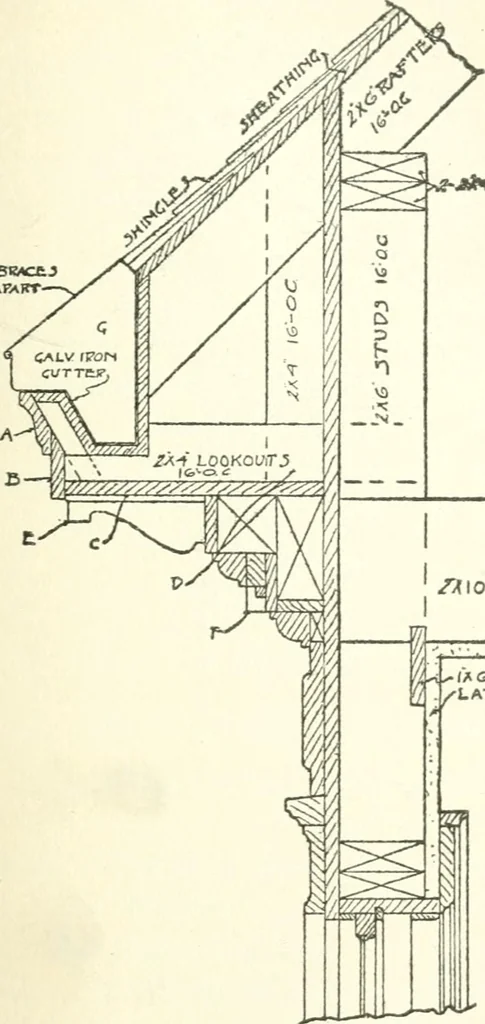

e have been pre-pared some typical details. The reader, havingbecome familiar with the details shown, canadapt them to any sort of building. Cornice. The cornice is the projection at thetop of the building, made more or less elaborate.There are several kinds of cornices—the boxcornice, as shown in… … JA\0 JOIJTJ 16-OC 7 . /-LATH 1 FLAM^r Fig. 44. Box Cornice. brackets E; the dentil course F. Not all corniceshave all these parts. The plainer ones may bewithout the brackets E and the dentils F; or 270 AECHITECTUEAL DEAFTING more elaborate cornices may have more mem-bers. The closed cornice always…
Architecture · Building
Internet Archive · Gerstein Library, University of Toronto · Public Domain Mark 1.0. Free to use for anything.
