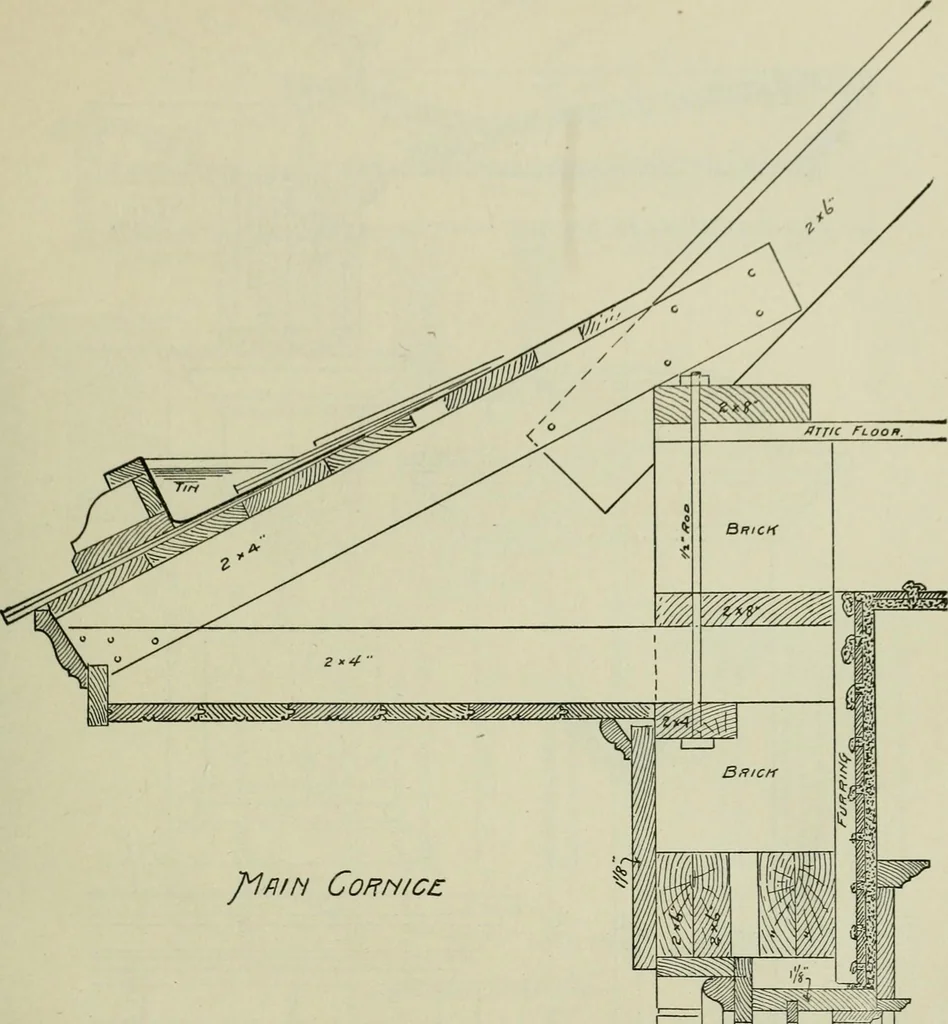

Detail of a China Closet PLATE 122—CORNER CHINA CLOSET Plan and section showing construction of a floor, together with method of running the flues, nicely arranged china closet to he huilt in the Porch details, showing proper relation between corner of a room. Also detail showing the ar- the… … J^lfllN C0RN/C£ PLATE 123—DETAIL OF MAIN CORNICE ON BRICK HOUSE Substantial cornice construction for a brickhouse. The cornice is of the wide extending boxtype, the roof being given a perceptible flare atthe eaves by means of two by four pieces nailed onto the rafter ends. Note method of…
