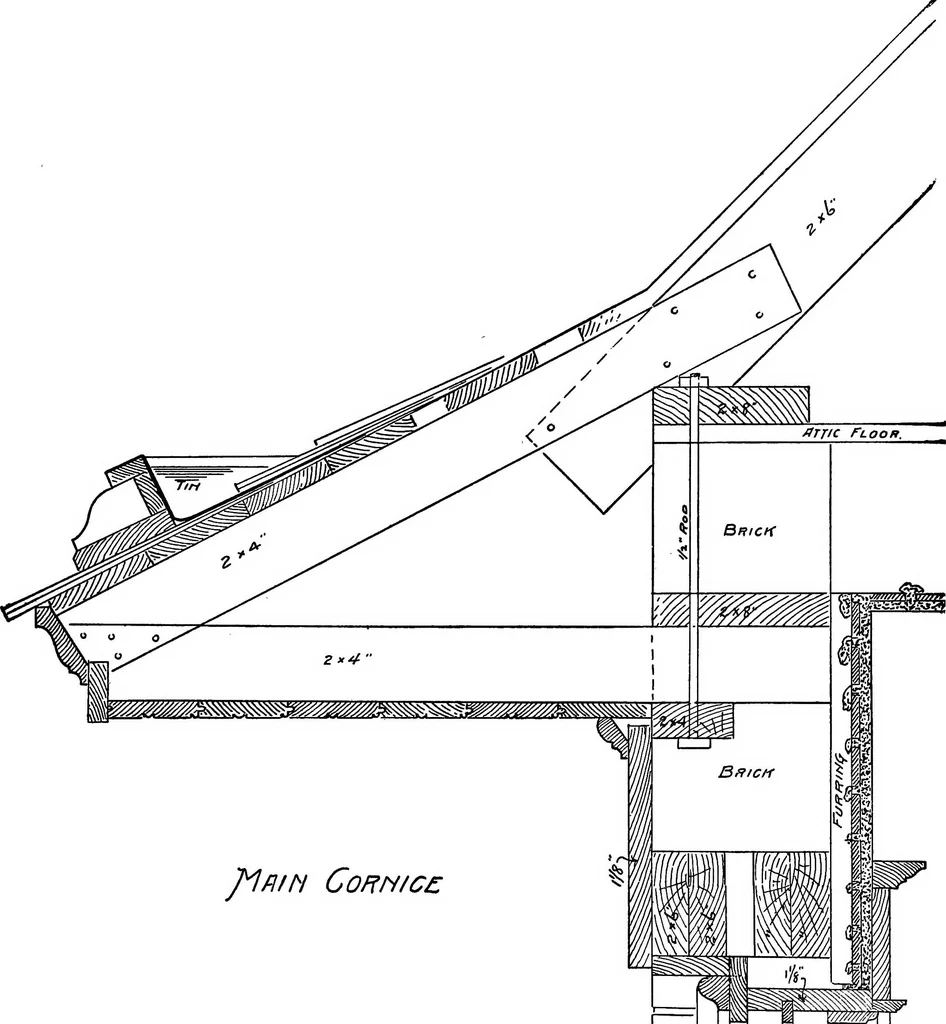

Detail of a CHina Closet PLATE 122—CORNER CHINA CLOSET Plan and section showing construction of a floor, together with method of running the flues, nicely arranged china closet to be built in the Porch details, showing proper relation between comer of a room. Also detail showing the ar- the various… … J^fl/N C0RN/C£ PLATE 123—DETAIL OF MAIN CORNICE ON BRICK HOUSE Substantial cornice construction for a brickhouse. The cornice is of the wide extending boxtype, the roof being given a perceptible flare atthe eaves by means of two by four pieces nailed onto the rafter ends. Note method of…
