Radford's portfolio of details of building construction : a remarkable and unique collection of full-page plates, accurately drawn and reproduced to exact scale ... (1911)
Radford, William A., 1865-, Johnson, Bernard L, Rawson, Charles P · Chicago : The Radford Architectural Company · leaf 189

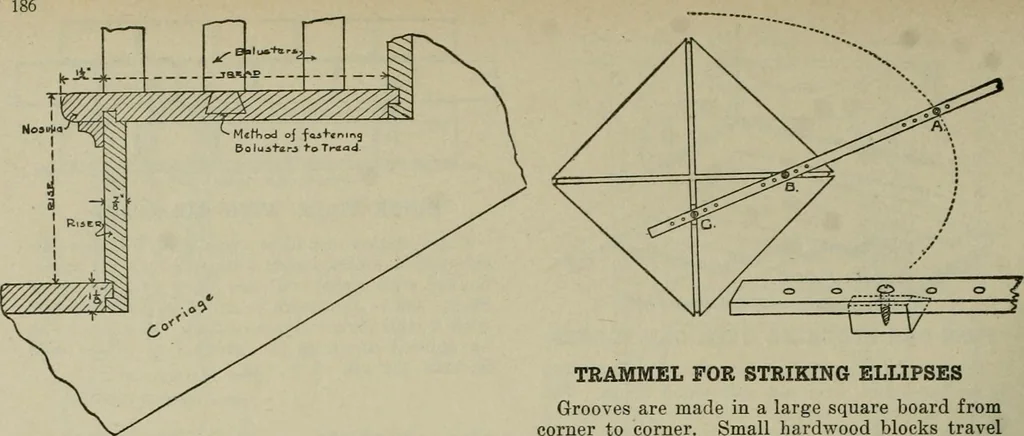

The first arrangement shows the mouldnailed to the base; when the floor joists shrinka crack shows between the bottom of the mould-ing and the floor. In the second arrangement thebase is set into a shoe which is nailed to the floor; shrinkage of the floor joists does not in this casedisclose a… … JOINTS USED IN STAIR BUILDING Details showing clearly the various parts ofthe stair, together with the joints used in fasten-ing them together. TRAMMEL FOR STRIKING ELLIPSES Grooves are made in a large square board fromcorner to corner. Small hardwood blocks travelin these grooves. The blocks are…
