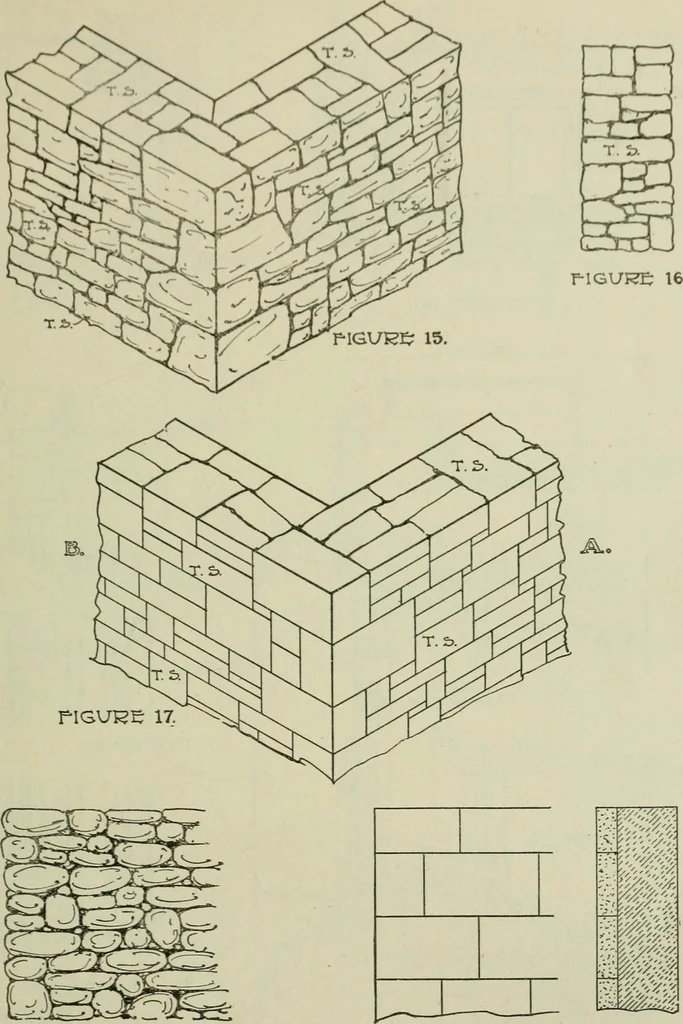

of flat archesas shown in Fig. 17, Plate 40. The main weightof the wall is carried by the concealed woodenlintels and the rough brick relieving or discharg-ing arch above. Figs. 20 and 21 show woodenfalse work used to support the bricks of an arch while the arch is being built. Fig. 22, Dutcharch;… … FIGURE 18. F-IGUKS 19. ^ectiojh. PLATE 42—STONE MASONRY WALLS Figs. 15 and 16 show a wall with stones laidup random rubble. Proper bonding requires theinsertion of through stones, marked (T. S.),at intervals of four or five feet in the length,and about every eighteen inches in the height of the…
