Radford's portfolio of details of building construction : a remarkable and unique collection of full-page plates, accurately drawn and reproduced to exact scale ... (1911)
Radford, William A., 1865-, Johnson, Bernard L, Rawson, Charles P · Chicago : The Radford Architectural Company · leaf 85

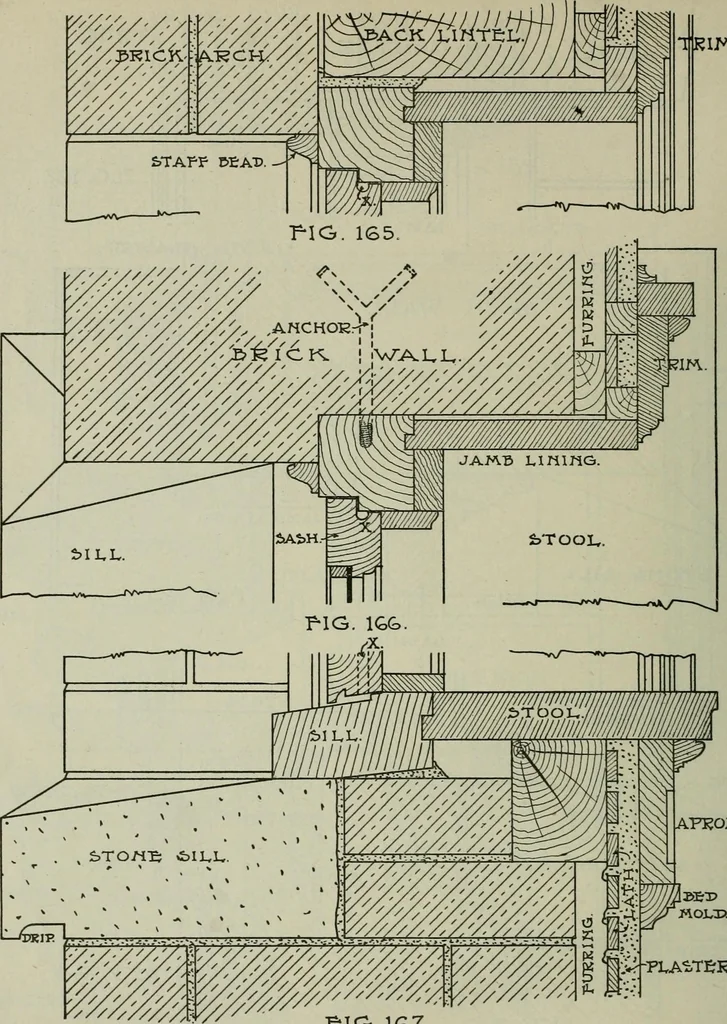

iud. 2SACK&T. F-1G. 1G4.FLAVTSl?. PLATE 72—INEXPENSIVE CASEMENT IN BRICK WALL Outward opening casements of cheap construe- tion through window jamb. Note arrangementtion; arrangement tor 13 inch brick wall. Fig. of moulded stop bead and jamb lining. Fig. 164,62, section through window head.… … APKON. g |j&;-PLASTER. FMG. 1G7 PLATE 73—OUTWARD OPENING CASEMENT—IMPROVED CONSTRUCTION Arrangement for 16 inch brick wall. Fig. 165, cessed space and with joint covered with staff section through window head. Fig. 166, section bead. Fig. 167, section through sill. X indicates through jamb.…
