Radford's portfolio of details of building construction : a remarkable and unique collection of full-page plates, accurately drawn and reproduced to exact scale ... (1911)
Radford, William A., 1865-, Johnson, Bernard L, Rawson, Charles P · Chicago : The Radford Architectural Company · leaf 93

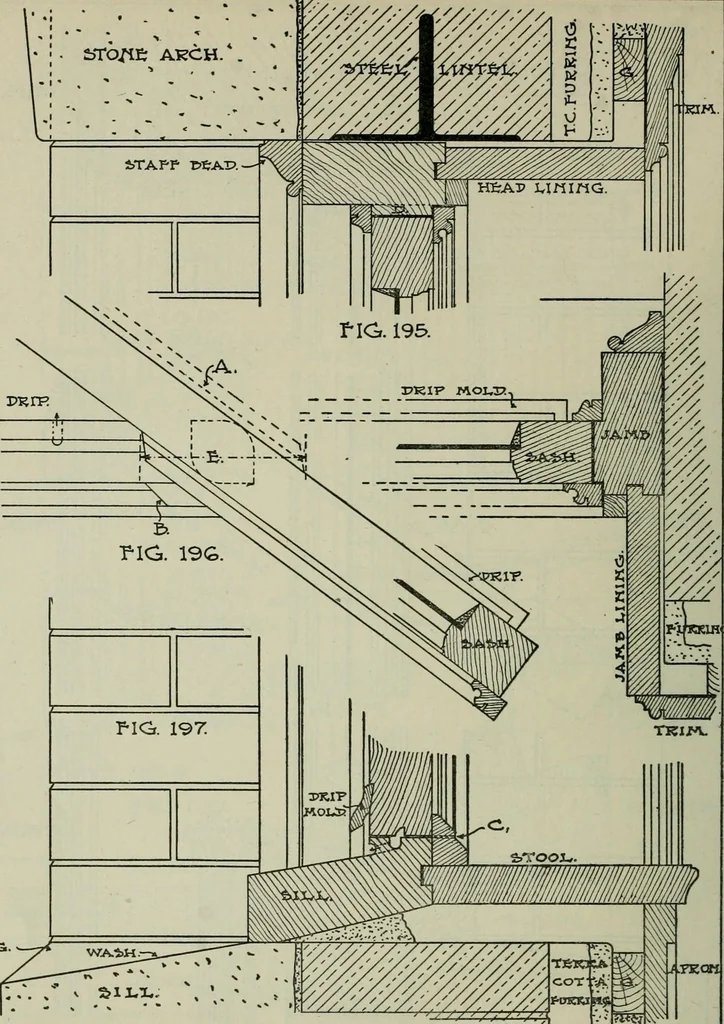

D CASEMENT WINDOW Construction in 16 inch brick wall. Pivoted head. Fig. 193, vertical section taken through thecasements should not be used in locations ex- window at the axis of the sash, showing the win-posed to severe driving rain storms, as it is prac- dows closed by means of the solid lines… … SXHs ^///v/7v:;i PLATE 81—VERTICALLY PIVOTED CASEMENT WINDOW Construction in 16 inch brick wall. It is diffi- izontal section through the window, showing the cult to make this type of window weather-tight, position of the sash, both when open and when especially for windows in exposed positions.…
