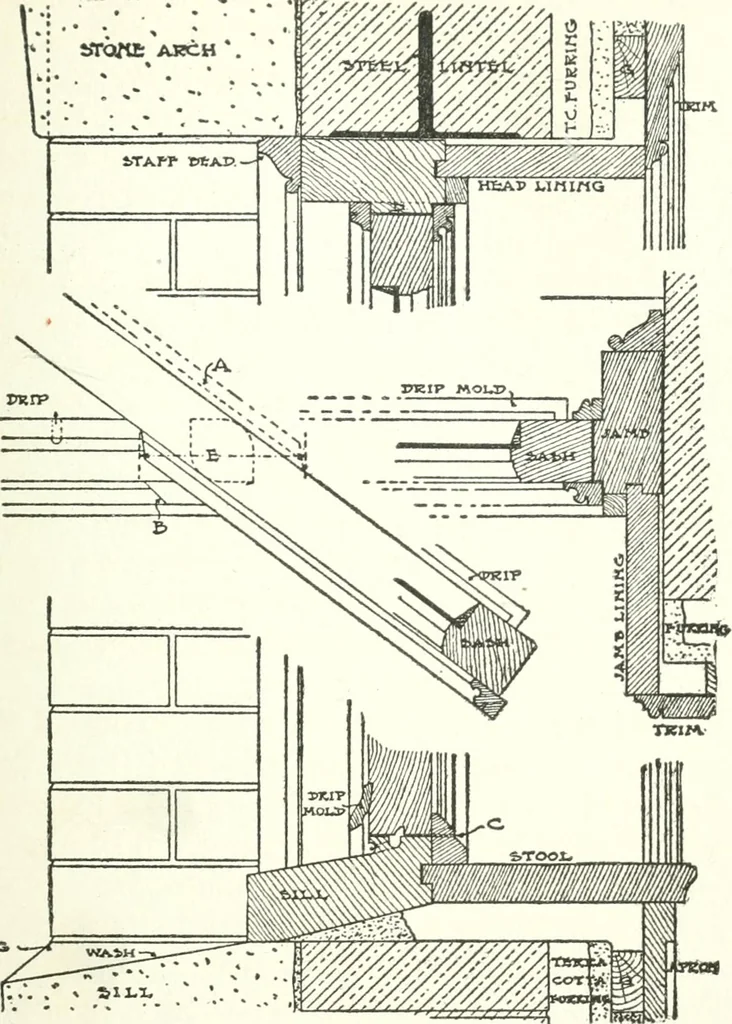

s fastened to the frame. With the in-side mould at the top of the window, the reverseis the case, the mould having half its length fast-ened to the right side of the sash. This is alsothe case with the inside mould at the bottom ofthe window, except that this mould is cut as atB, and then slit… … Tig. 105. Pivoted Casement Window. which are fastened on the head of the sash and project above it will clear the frame at this point. In Fig. 105, the upper portion is a vertical section, showing the construction at the head of 206 FRAMING the window. The middle part is a horizontalsection through…
