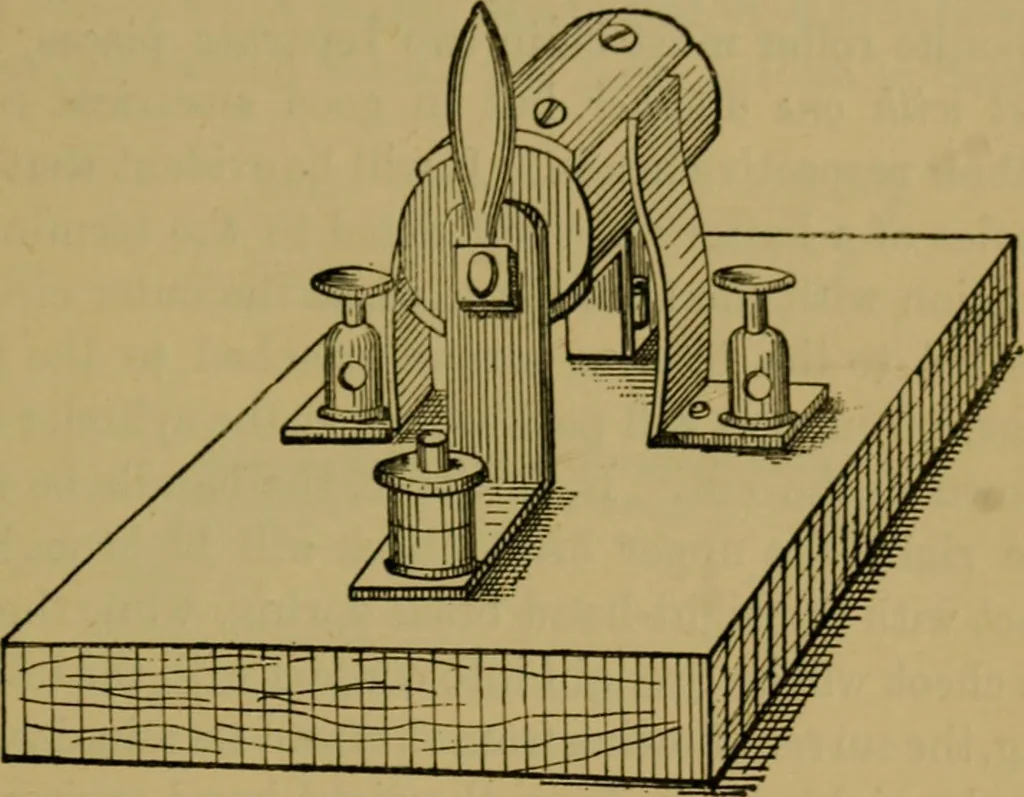

Fio. 14.—Dori.LE SpkingContact-Bkeakek. THE INDUCTION COIL 49 with these large coils is the commutator^ or currentreverser, which enables us at will to cut off or reversethe direction of the current sent from the battery throughthe primary of the coil, and consequently to stop orreverse the… … Fig. 15.—Commutator. of ebonite, or other good insulator, mounted between twometal standards which can be placed in circuit with thebattery. Each end of the cylinder is fitted with a metalhead of the same diameter, and a tongue of metal inconnection with these heads is let in at opposite sides…
