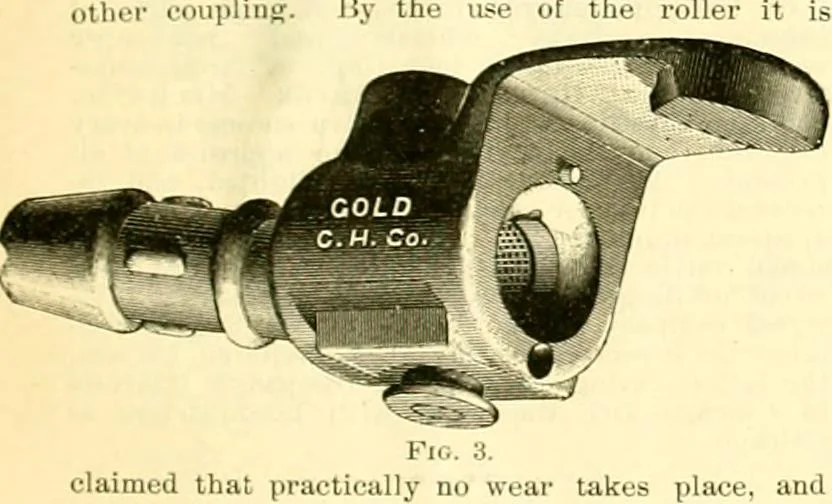

he coupler very accessible. A fine strainer is inserted in each coupler body andis kept in position by its own spring-like movement with the thimble cast on it as shown, weighs .5 lbs.From Fig. 2 it will be seen that there is a straightpathway for the steam through the coupling. Eachcoupling has… … claimed that practicallj no hl.ii takfriction is reduced to a minimiun when coupling. Aspherical socket, shaped in each coupler lx)dy, ismade to receive the seat which is showh separately inFig. 4. Back of these spherical sockets there is agroove for receiving the spring shown attached tothe seat.…
