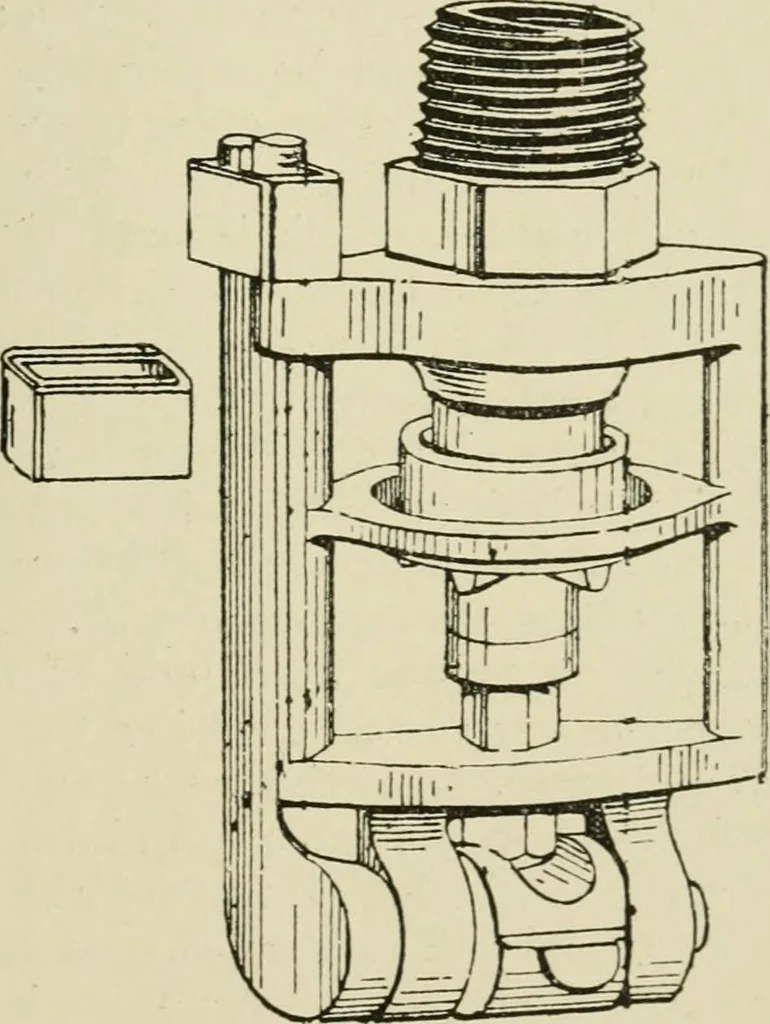

m under the valve B. The water 73 then rushes through the orifice into the chamber Gand finds its way through the holes formed at thetop and bottom of the chamber surrounding thetubular portion of A. By a deflector K L the sprayis distributed. It is claimed for the Witter thatthe strain on the… … Fig. 29. seat formed of a flat upper disc, having a special com-position beneath it, and also acting as a deflector.The valve spindle is guided by a cross-bar attachedto the frame, and is in two parts, screwed one withinthe other, so that it can be lengthened as desired.Its lower end is hollowed,…
