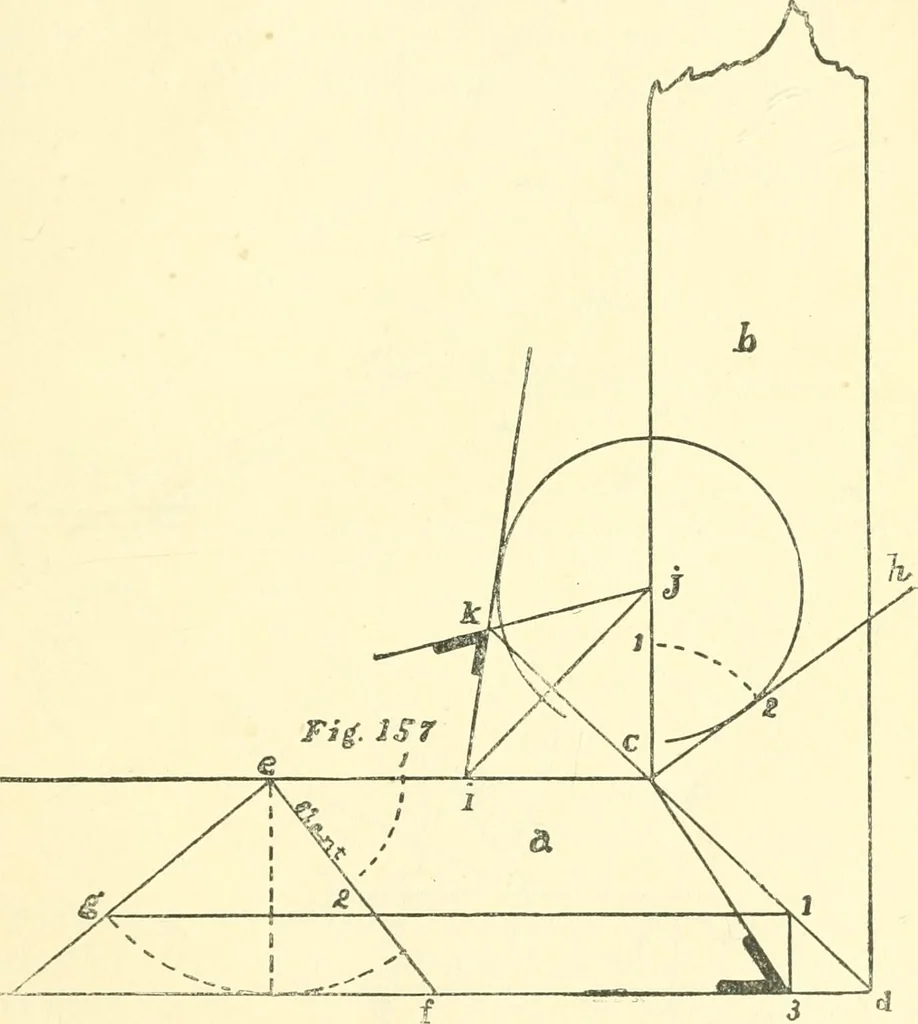

and 4; connect c and 3, thus giving the bevel for the faceof the work ; then connect c and 4, thus finding the bevelfo- the edge of the work, as shown in Figs. 154, 155. 156. FOR CARPENTERS AND MECHANICS. 109 137—To Find the Bevels of a Hopper of anyNumber of Sides Having Butt Joints.—Draw a… … the base line, as shown, using c as centre, thus findingpoint g; from g draw a line parallel to the base line untilit strikes c d 2X \ \ then drop a perpendicular from i, asI 3 ; connect c 3, thus finding the bevel for the face of thework ; now make the angle i 2 c equal to i 2 ^ and drawc h…
