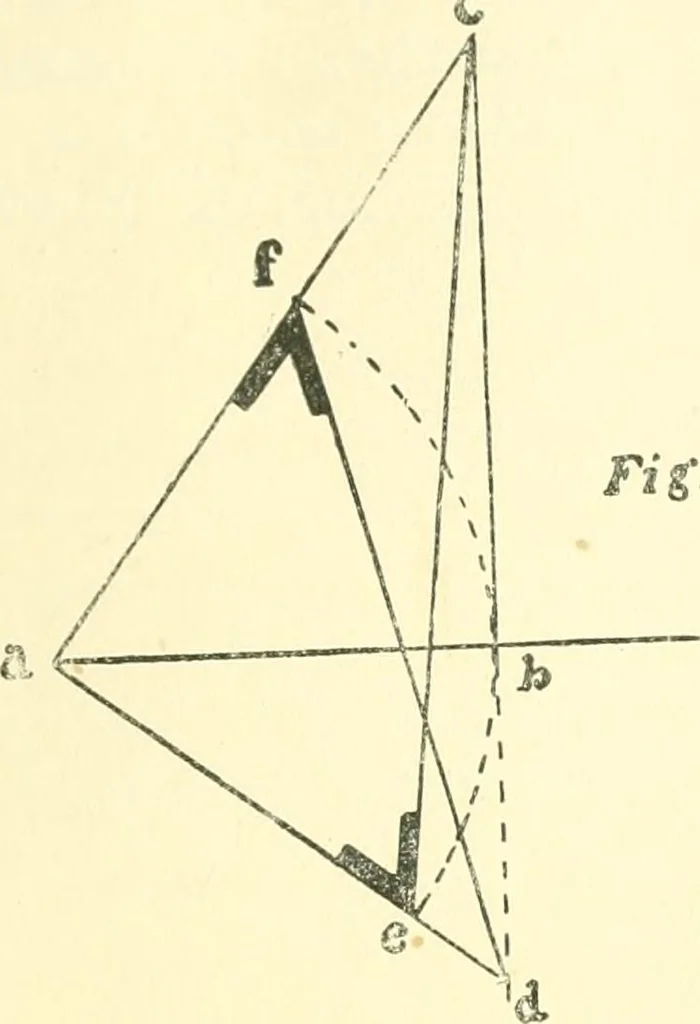

Fig. 762 as radius and b as centre, strike arc c f d; then draw linej i parallel \.o c d and touching the arc at f; connect c jand d i; then draw line from b to /, which gives the bevelfor the face cut, as shown at 2 ; then draw perpendicular FOR CARPENTERS AND MECHANICS. 113 … Fif IS J from d intersecting arc at /; then, with ^ as centre andthe distance from ^^ to the Une b d 2iS radius, strike arc at //, intersecting b f; thendraw line from ^ to /^, thusgiving the bevel at i forthe edge of the work. Inthis diao^ram the sides havea slope of 45°, as shown bythe elevation…
