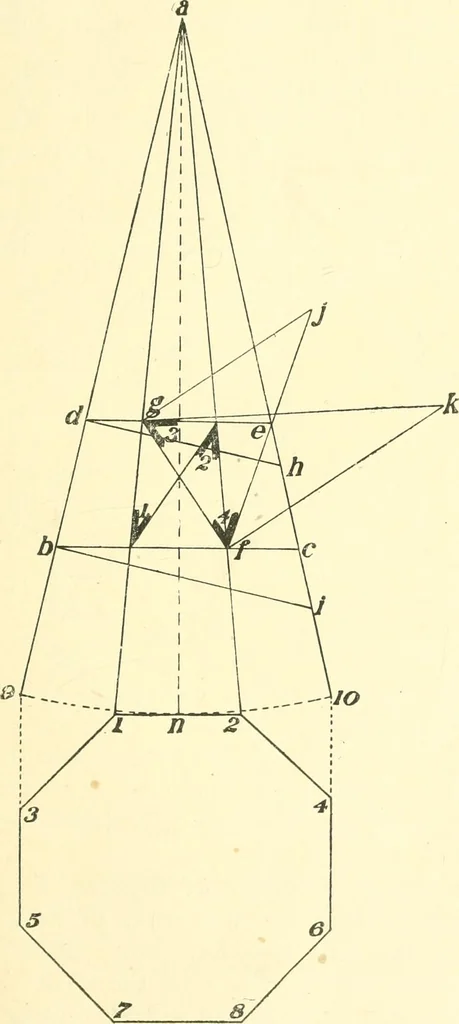

he braces, asshown at 3 and 4.The bevels at i and 4 being for the topend of the brace and3 2 for the bottom. 26—To Find theBevels to Cut theBraces for an Oc-tagon Steeple.—Draw an elevationas ^ 9 I 2 10, Fig.24; now draw theline of the chords,as d e and b r, alsothe line of the braces,as ^y and i… … Fig.24> ;o GUIDE AND ASSISTANT making it equal to d Ji; then draw a line from f at rightangles to g f, making it equal to b i; connect g k and f j,thus finding the bevels for the side of the braces, as shownat 3 and 4. The bevels 2 3 being for the top end of thebrace, and i 4 for the bottom.…
