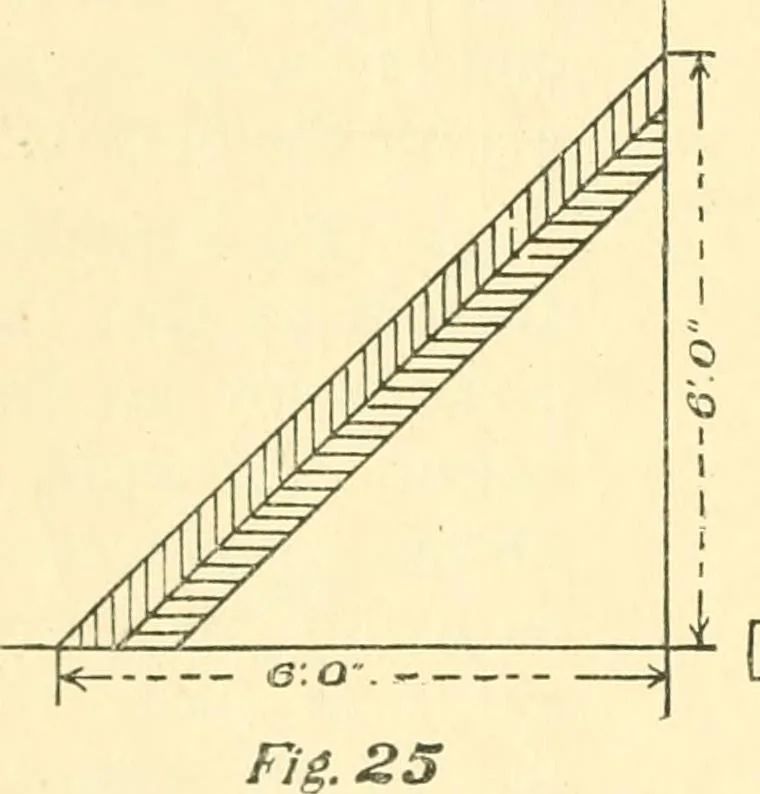

k and f j,thus finding the bevels for the side of the braces, as shownat 3 and 4. The bevels 2 3 being for the top end of thebrace, and i 4 for the bottom. 27—To Get the Cut of Braces where Their Di-agonal is Plumb when in Position, as shown in Fig.25. Take the run of the brace, multiplied by… … fe» / Fig. 26 ■1:24* Example.—Find the cut of a brace 6 feet run and 6 feetrise. The run, 6 feet, by .70711 =4.24266. Now draw aline from 4.24^ on the blade to 6 on the tongue, and thebevel on the blade is the bevel to cut the brace, as shownin Fig. 26. For the top multiply the rise by .70711…
