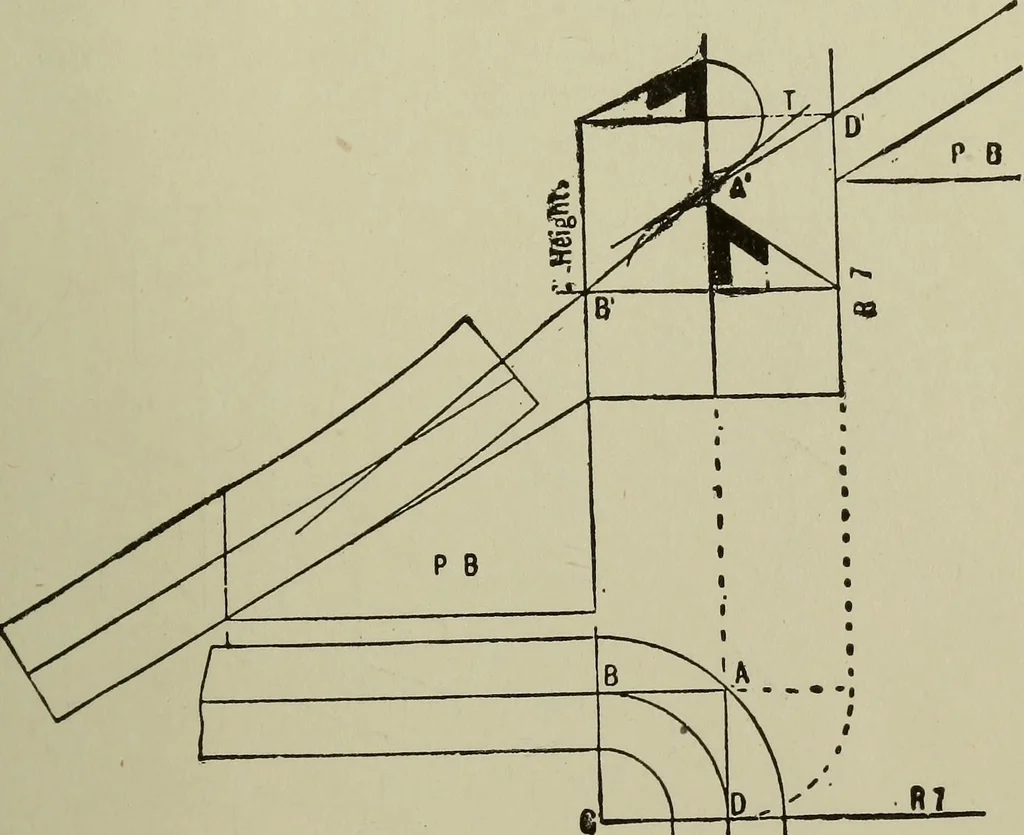

point S, still keeping the end on theboard, and mark the point. If the distance betweenthe two points on the rod equals the height at Fig. 2the wreath can be squared, if not, the center lines mustbe raised or lowered to suit. Fig. i8 is the plan and stretchout of the tangents foranother… … ^ig. 1 a. RP AD is produced past A, which is the point where thecenter line of the lower portions must meet it. It willbe seen that if the center line of the lower portion hadbeen produced, it would cut the perpendicular below So COMMON-SENSE HANDRAILING A. Then the pitch must be altered to…
