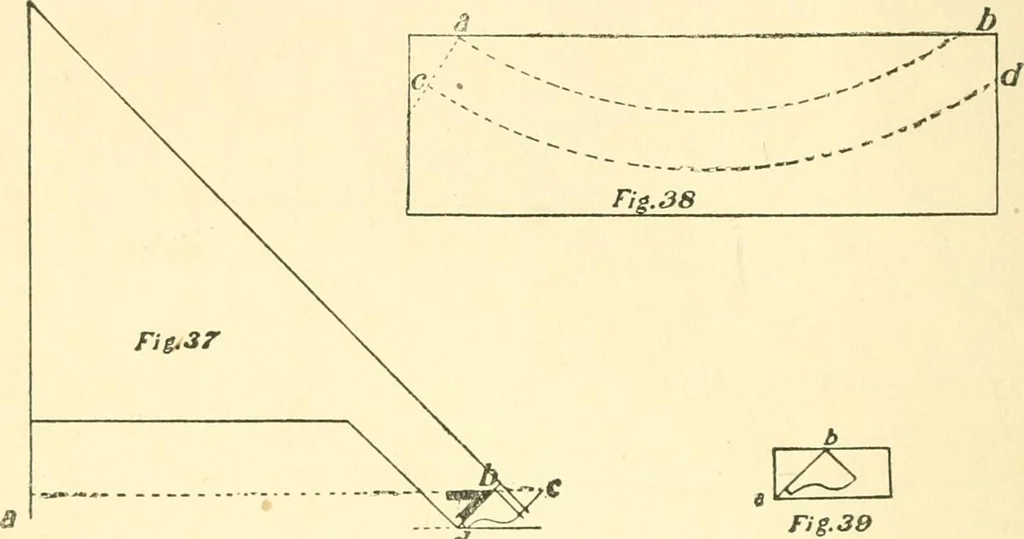

Fig. 3& 3S GUIDE AND ASSISTANT of the circle across one end of the plank, as a c, Fig. 38.Cut the end of the plank off and with the bevel at d, Fig.:^/, mark off the moulding as shown in Fig. 39. Theplank can then be cut on the band saw and the mouldingworked out by hand. … rjg.39a. 37—To Bisect a Given Angle.—In Fig. ^o a b crepresents the angle. With any radius and a as centre, de-scribe the arc, i 2; then, with same radius and i and 2 ascentres, describe the arcs intersecting at 3; draw a linefrom a through intersection 3. 38—To Draw a Line atRight Angles to…
