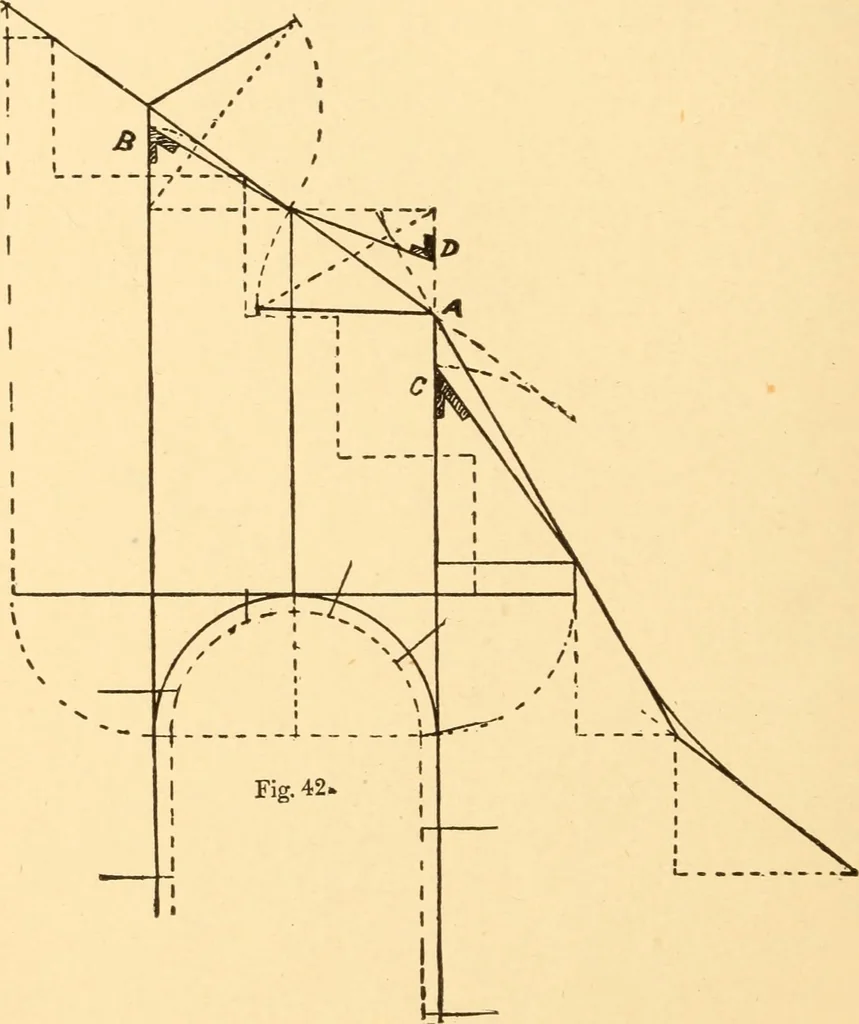

amp. There seems to be no difficulty presented in theseproblems that cannot be readily overcome if the stu-dent but applies himself diligently. We would sug-gest that each one of these figures be drawn and S6 COMMON-SENSE HANDRAILING redrawn, until the student has become so tamiliar witheach one of… … In Fig. 42 we represent a flight of stairs with fourwinders, quarter landing, and return flyers. FIRST METHOD 37 This shows the ground plans of cylinder, with riserscutting the tangent around the center line of rail; alsothe elevation of risers, the pitch-lines, and thedevelopment of the tangents.…
