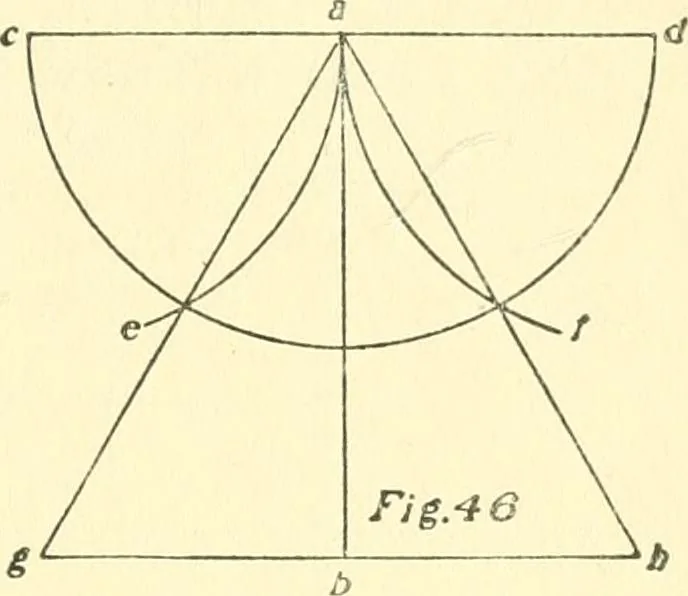

43—To Draw an Equilateral Triangle when thePerpendicular is Given.—Draw a b for the perpendicu-lar. Fig. 46; then draw c d a.nd £ h at right angles to a b;then, with any radius and a as centre, draw the semi-circle,
