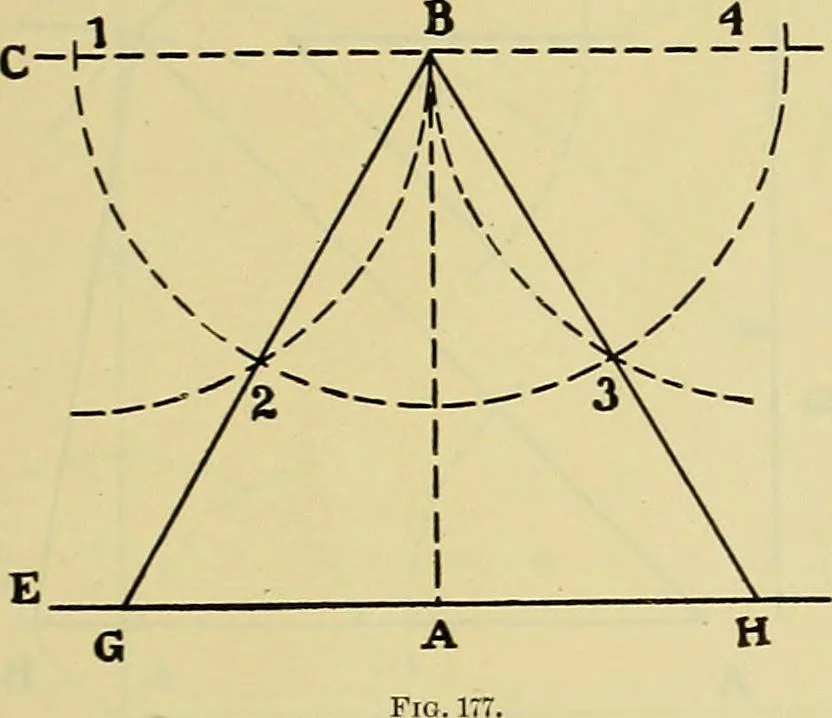

176. From the points A and B with a radius equal toAB describe arcs cutting each other at C. Drawthe lines AC and BC ; then will the triangle ABCbe the required equilateral triangle. ROGERS DRAWING AND DESIGN. 93 To cojisiruci an equilateral triangle, the verticalheight or altittide being given.… … convenient radius describe a semicircle cutting- CDat I and 4. From i and 4 as centers, with thesame radius, cut the semicircle at 2 and 3. FromB and through the points 2 and 3 draw the linesBG and BH; then GBH will be the requiredtriangle. To construct an isosceles triangle, with a base equalto a…
