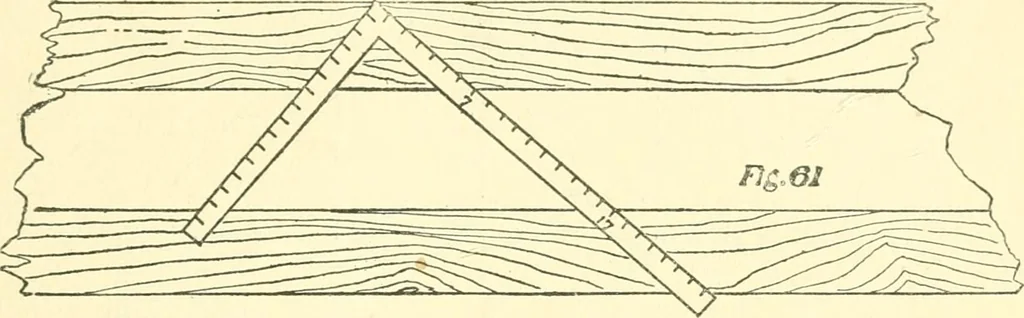

56_To Reduce a Square Stick to an Octagon.— Place the blade of the square on the stick ni the positionshown in Fig. 61, and 7 and 17 on the blade will give thechamfer lines, as shown. FOR CARPENTERS AND MECHANICS. 47 57—To Draw a Regular Polygon of any Num-ber of Sides, when the Length of One Side… … equal parts as there are sides to the polygon, in this case7; then, as we have one side, a b, we skip the first divisionand connect a and 2; then from the centre oi a 2 and a bdraw lines at right angles until they meet at c, which is
