Richey's guide and assistant for carpenters and mechanics : a work of practical information, giving almost every geometrical and practical problem likely to arise in the work of the carpenter, and quick and easy methods for their solution : the use of the steel square, etc., tables showing strength and weight of materials, methods of framing, useful recipes, etc., etc. (1894)
Richey, H. G. (Harry Grant), b. 1868 · New York : W.T. Comstock · leaf 87

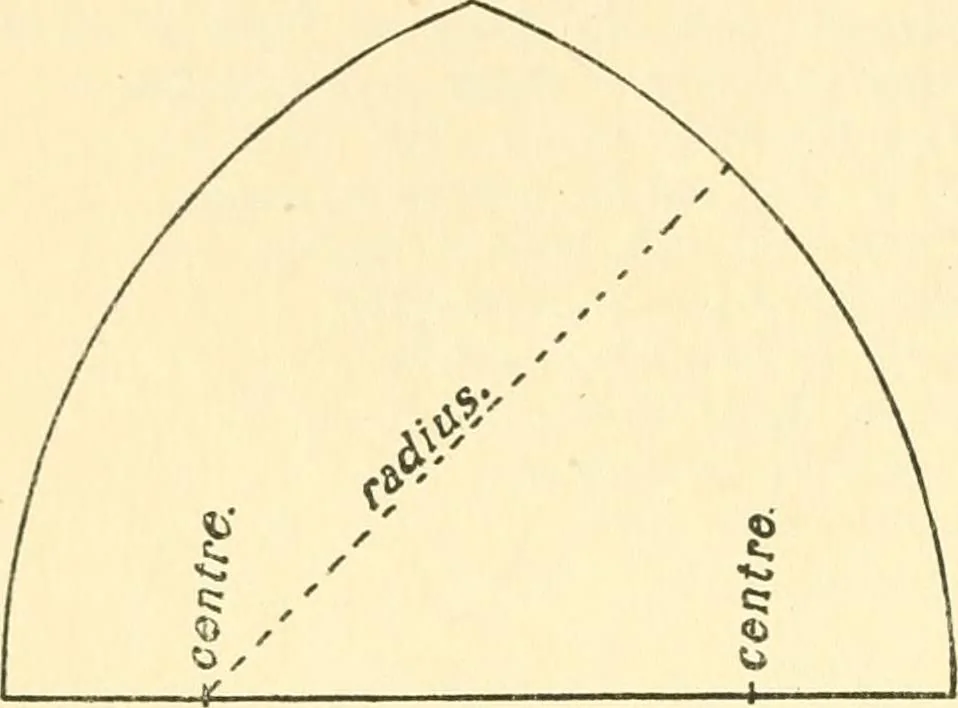

nd c as 8o GUIDE AND ASSISTANT centre, draw an arc through the perpendicular at ^, connectsand e, make ^^and b h equal to c f; now, with a b 2.s radiusand g and h as centres, find points i i and 2 2 on the base line ; drive a nail in eachof these points to attacha string; fasten thestring at 2 and… … rjg.ioa 104—To Draw the Soffit or Veneering of a Drop orGothic Arch with Splayed Jambs.—Draw a section ofthe arch, showing theposition of the jambs,Fig. 113. From one ofthe centres, as c, draw aperpendicular line in-definite, as c d; con-tinue the face line ofjamb a to bisect c d 2Xd; then d is the…
Carpentry
