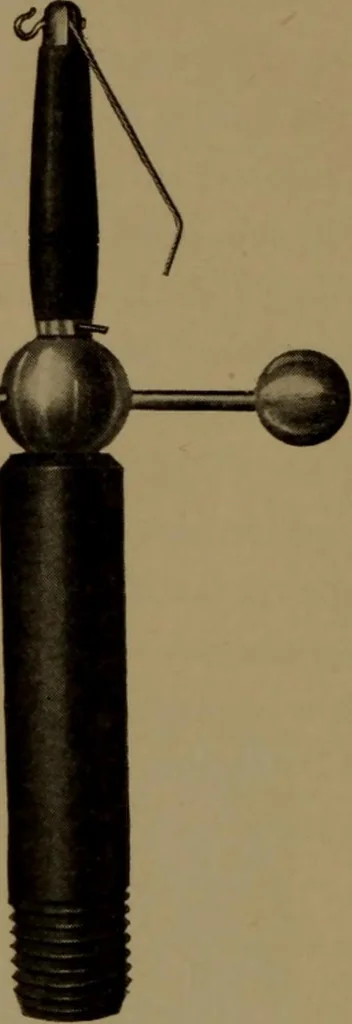

ion of the anode is the same.The only difference in fact is the use of the three anodes, making itpossible to set them for light, medium and heavy discharges of thecoil respectively. After the anodes have once been adjusted, the dif-ferent kinds of discharge can be obtained by the manipulation of… … Fig. 5. The well known phenomenon of the inverse discharge of theinduction coil makes it advisable to use some form of resistance inseries with the terminal of the induction coil and the X-Ray tube toprevent this inverse discharge from going through the tube. Whenthis inverse discharge is permitted…
