Rogers' drawing and design; an educational treatise relating to linear drawing; machine design; working drawings; transmission methods; steam, electrical and metal working machines and parts; lathes; boiler and parts; instruments and their use; tables, etc (1913)
Hawkins, N. (Nehemiah), 1833- · New York, T. Audel · leaf 121

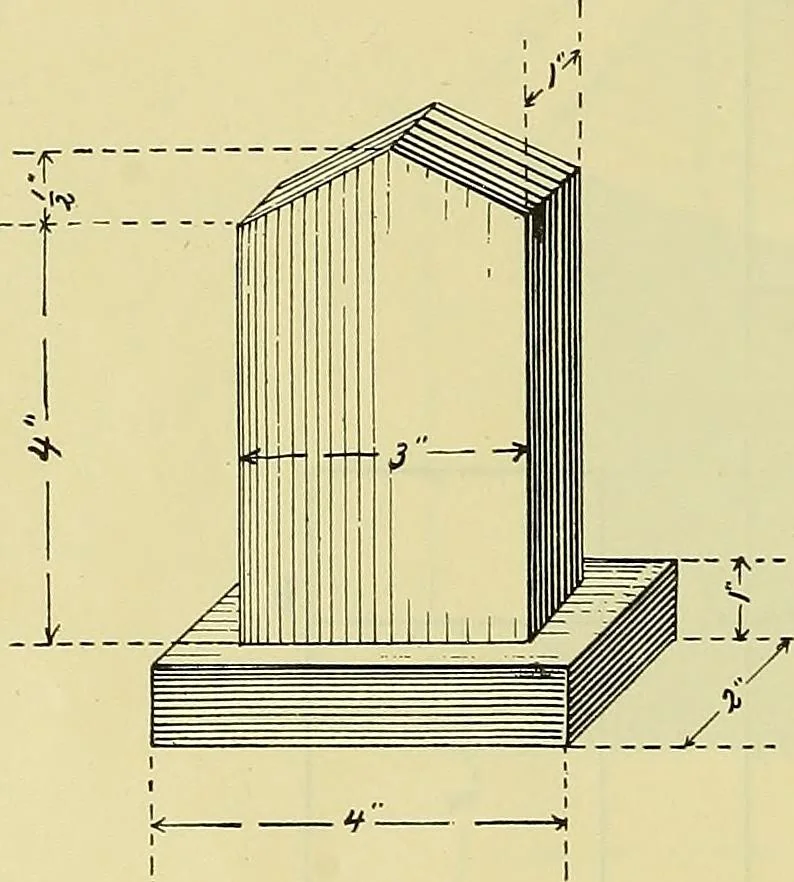

; V d --...^ , a P-- ^ Jf- —--^ > V \ t Fig. 243. 136 ROGERS DRAWING AND DESIGN. Draw a front view, side view and top view of themodel shown in Fig. 24J. As the object to bedrawn has the same appearance from either right orleft side, it does not matter which side view is to bedrawn. … Fig. 243. The construction of the views is so obvious thatno explanation need be offered with the drawingshown in Fig. 244. It will be noticed that thisfigure, as well as all others in this chapter, areshown with lines representing the sides of the dif-ferent parts of the object. Draw two…
Mechanical drawing · Machine design
