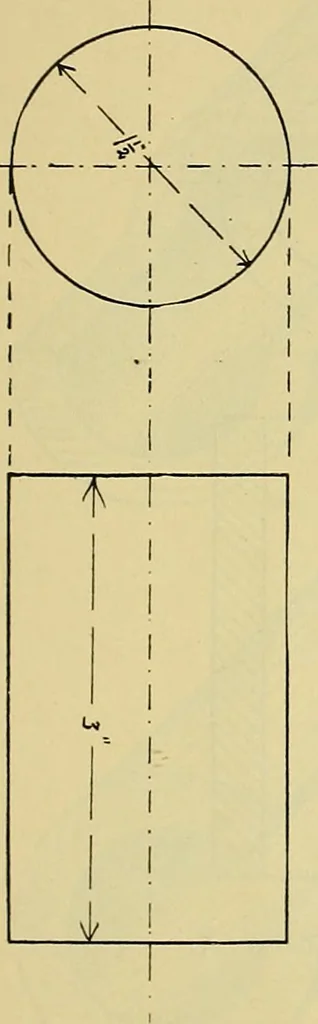

B Pig. 248. A center line should never be used as a dimensionline, but such lines may be laid off from the centerline on both sides of it. ROGERS DRAWING AND DESIGN. 141 … Fro. 249. In Fig. 2^g is shown the top view (or plan) andfront view {or elevation) of a cylinder, j high andi% in diameter. The top view is a circle ij^ indiameter, the front view a rectangle 3 by i^. Allside views of the cylinder are the same. As in all figures standing on a base of an irregu-lar…
