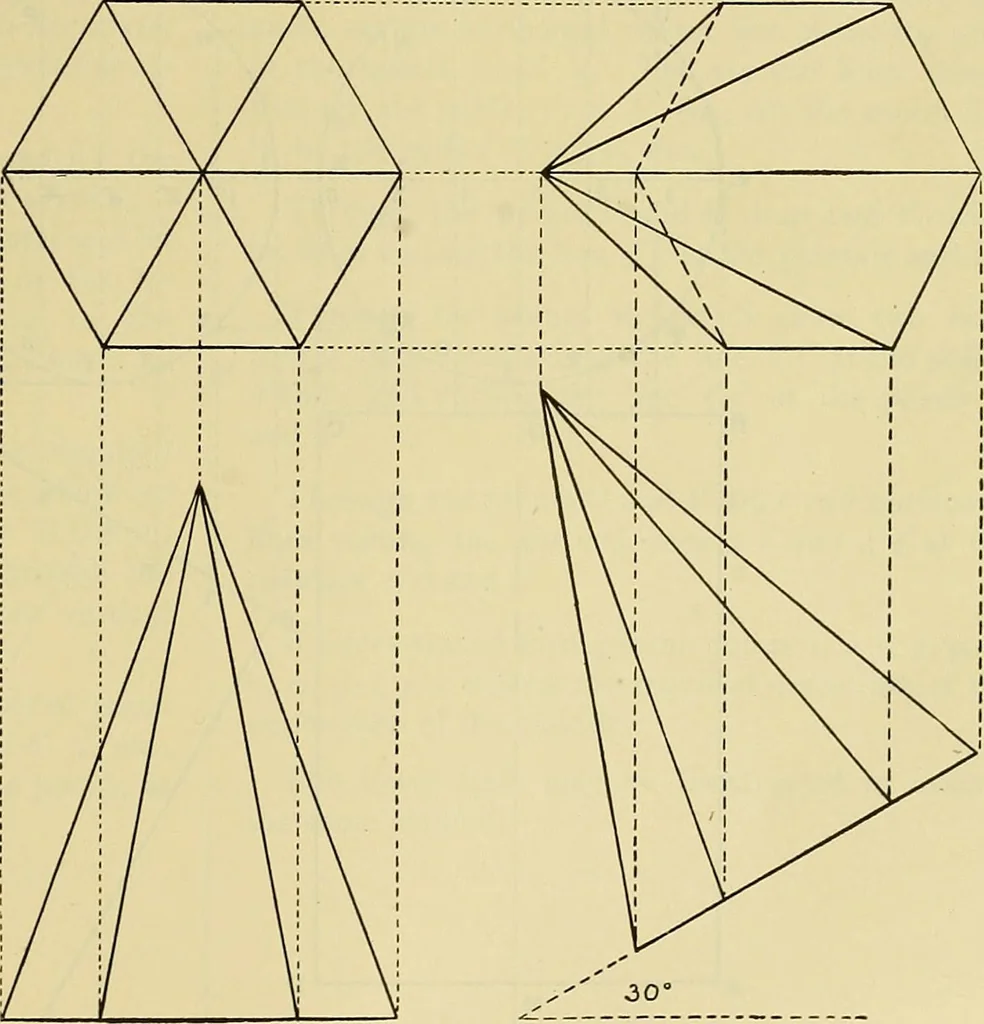

LO and thecenter line OGNP in the points,LGJINM forming the upper face ofthe prism in the required top view. To complete the top view drawvertical lines through H and F cut-ting the line JK at the point K, theline GP at the point P and the lineLO at the point O. To draw a hexagonal pyramid,having… … Fig. 270. 156 ROGERS DRAWING AND DESIGN. S E
