Rogers' drawing and design; an educational treatise relating to linear drawing; machine design; working drawings; transmission methods; steam, electrical and metal working machines and parts; lathes; boiler and parts; instruments and their use; tables, etc (1913)
Hawkins, N. (Nehemiah), 1833- · New York, T. Audel · leaf 164

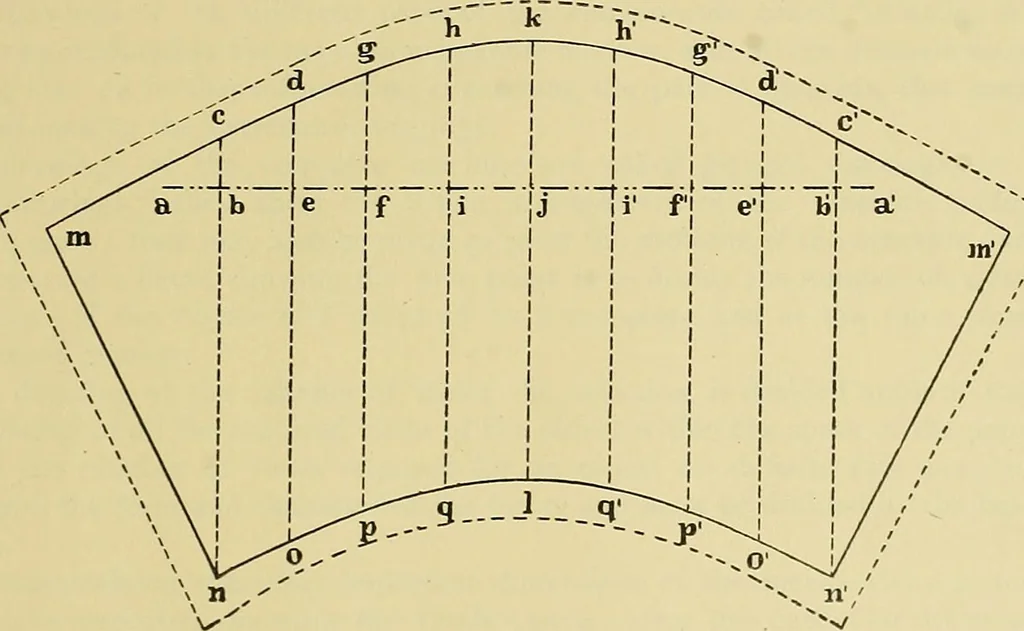

Fig. 294. Now trace a curve through the points c, d, g, h,k, h, g, d and c and another curve through thepoints, n, o, p, q, 1, q, p o and n. From the points n and n as centers, describe arcswith a radius nm equal to nm each equal to EF, inFig. 294 and intersect these arcs in the points m The dotted… … Fig. 295. WORKING DRAWINGS. The purpose of a working drawing is to give the shopman information necessary to be knownin order to construct the object or mechanism which is represented in the drawing. The drawings of the different parts of the machine are called detailed drawings; in theseeach…
Mechanical drawing · Machine design
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
