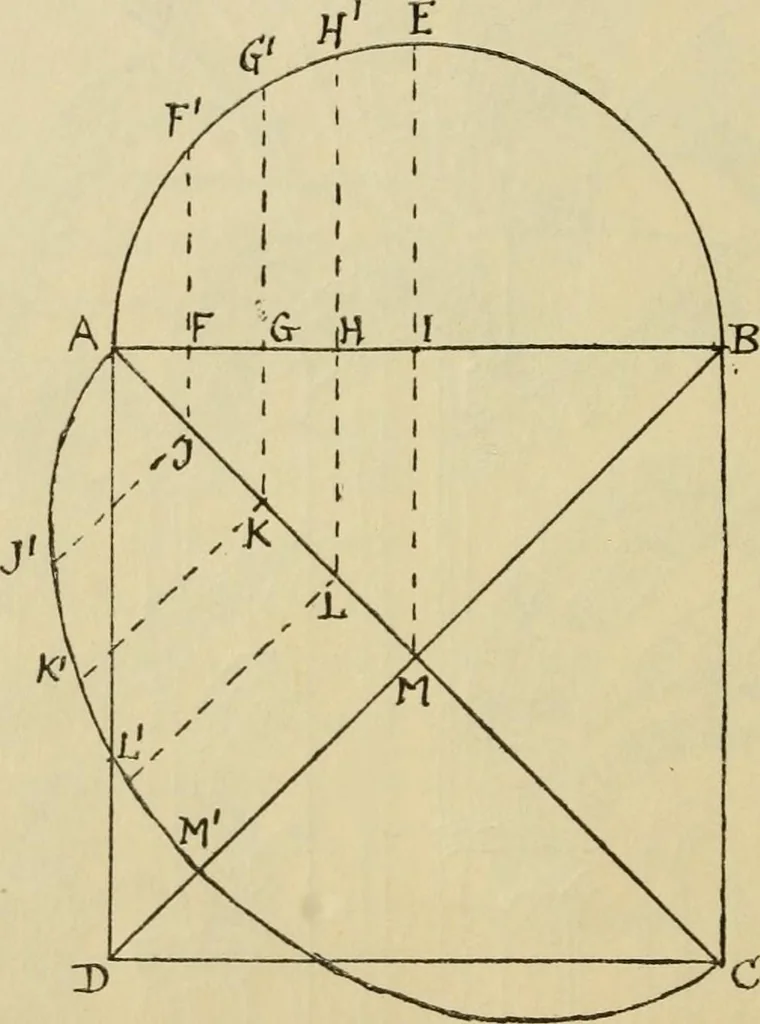

24 THE GOTHIC VAULT [CH. II The groin-ing line Let US take first an example of a cross-vault overa square bay of moderate size, say that of the crypt atWinchester which is about I4xi4. The four equalbounding arches are represented by A, B, C, D in Fig. 4,of which one A, E, B is set up in elevation… … Fig. 4. the groins will lie true in a straight line between ACand DB. On the base AC we set up the elevationof the diagonal groin, of which the crown M will ofcourse be level with E. The curve of the groin is foundby what are called ordinates. The direct arch A, E, B,which is the true section of…
