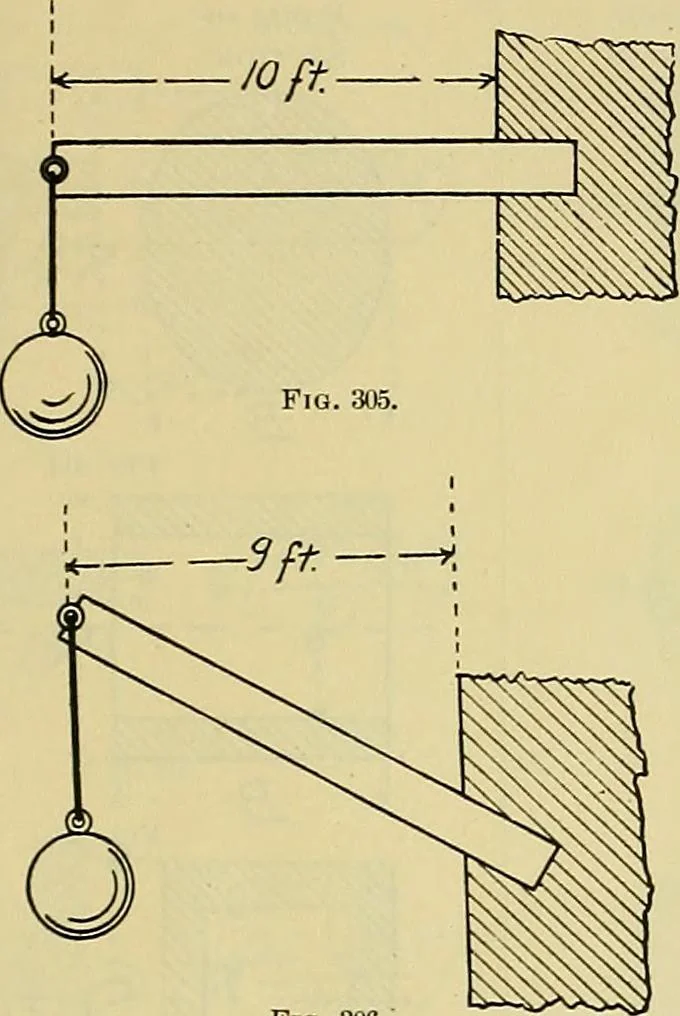

the force, from a point in which thebeam is supposed to be fixed. In Fig. 305 themoment of the force induced by the weight of 20 lbs.is equal to 20 times 10 ^= 200 ft. pounds. In Fig. 306, the moment is equal to 20 x 9= 180ft lbs. The resultant moment of the forces acting onthe beam on one side of… … Fig. 306- K Jft f
