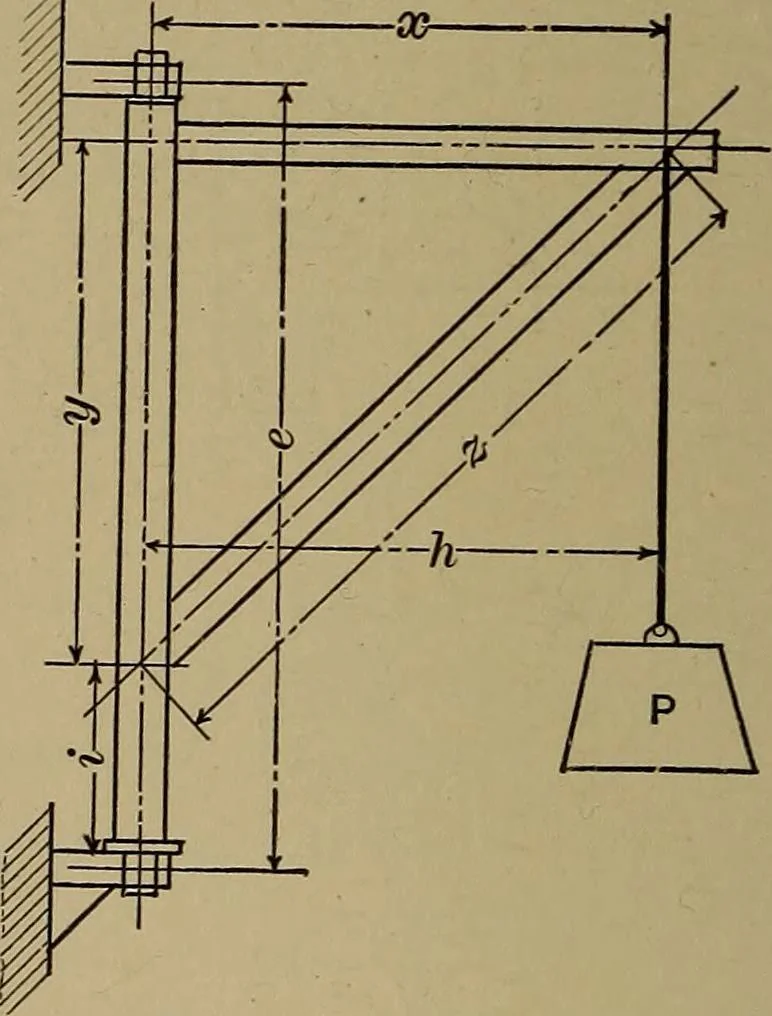

324 CRANES AND DERRICKS. CRANES. Cranes and derricks aremachines used for raising andlowering heavy weights. Inits simplest form, a crane con-sists of three principal mem-bers: The upright post, thehorizontal jib and the diagonalbrace. (See Fig. 5). Theweight P will produce tensilestress in the… … Stress in the upper bearing PX /i When the post is held at both ends, as in Fig. 5, it may.with regard to transverse strength, be considered as a beam oflength z, fastened at one end and loaded at the other with a load equal to the force h X P The compression on the post caused by the load is equal…
